About the Drop Deck Widener Trailer
An all-rounder trailer that can widen from 2.5m to 4m, enhancing load versatility.
It features a 47-tonne ATM, a 13.5m deck length, and bi-fold ramp system for easy loading and unloading.
Drop Deck Widener Benefits
The Drop Deck Widener delivers maximum flexibility for wide loads, effortless heavy-equipment loading, and rugged Australian-built durability you can rely on.
- Greater Load Flexibility & Stability
The trailer can widen from 2.5m up to 4m, allowing you to carry wider or irregular loads safely, improving load stability and versatility for different cargo types. - High Capacity & Practical Loading
With a 45 tonne ATM and bi-fold ramp system, it’s built for heavy haulage and makes loading/unloading machinery or equipment easier and more efficient. - Durable, Quality Construction
Constructed from BS700 grade steel with robust components (suspension, braking, tie-downs, etc.), it’s engineered for reliable performance under Australian conditions and built to last.
Cost Effective
High Quality
Family Owned and Run

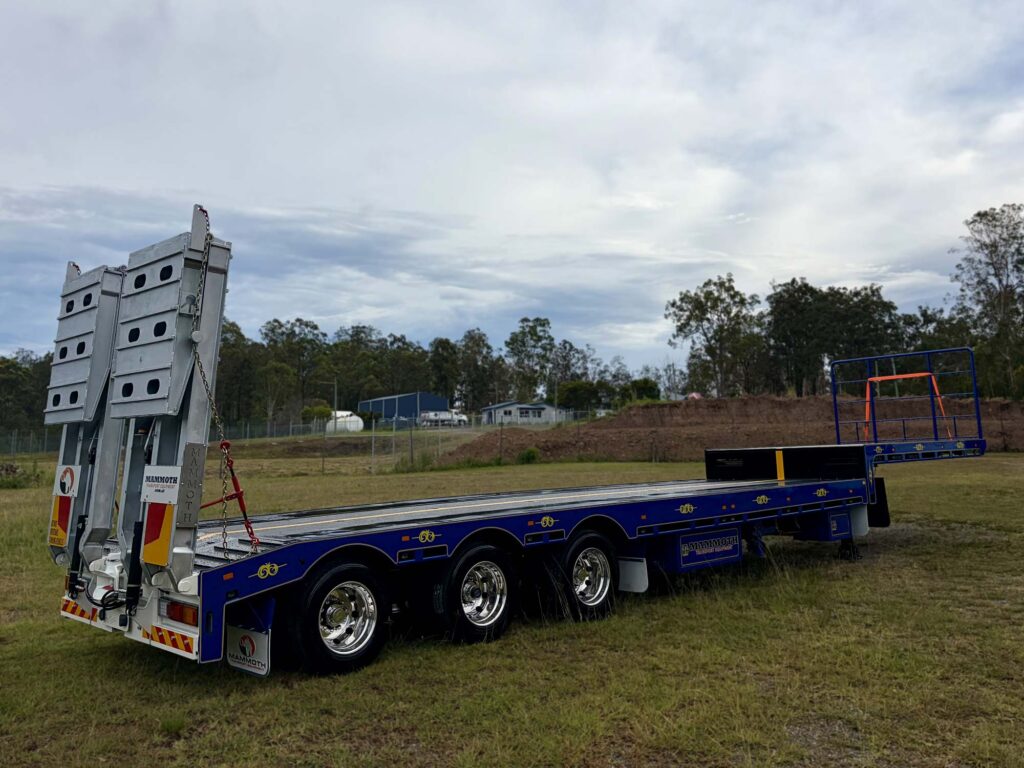

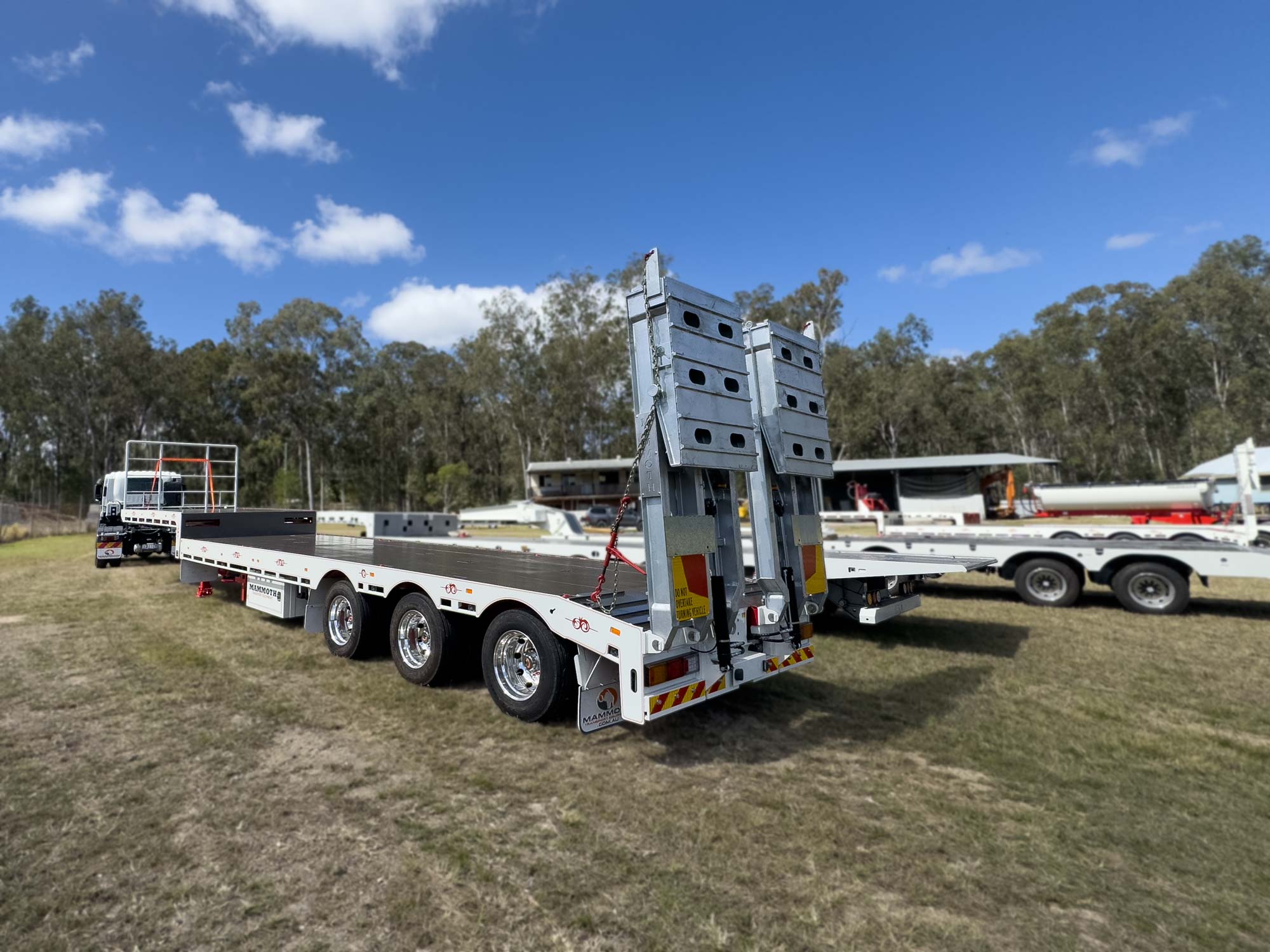

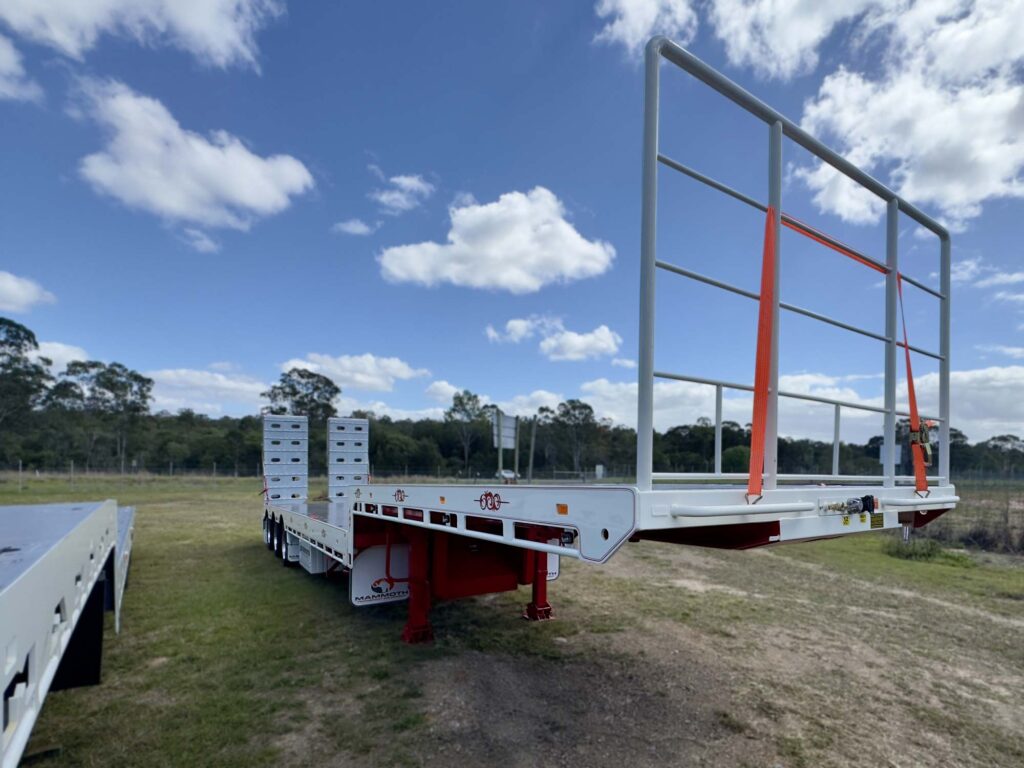

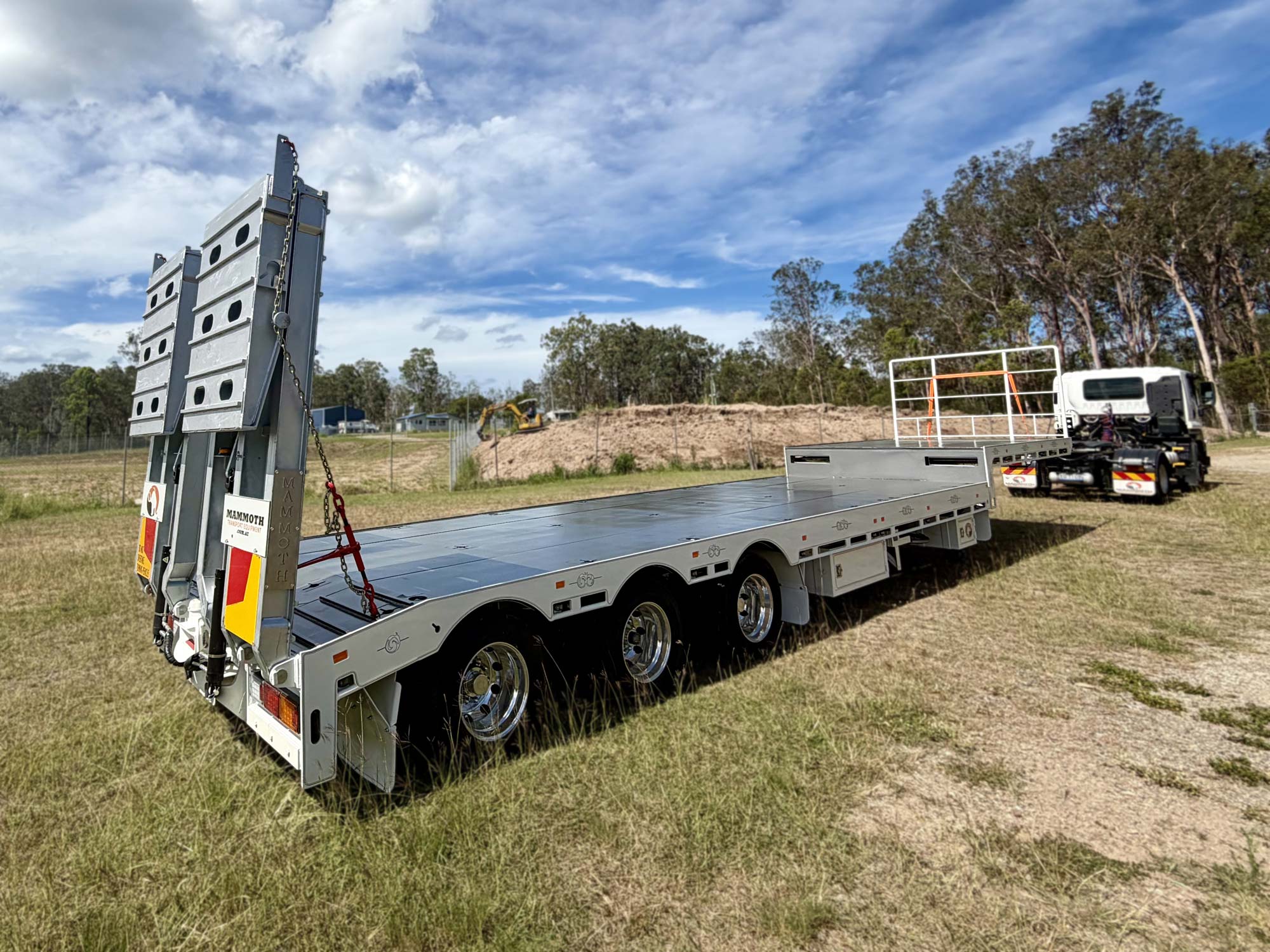

Drop Deck Widener Gallery
Technical Specifications
Dimensions
- Width 2.5m to 4m
- 9.5m bottom deck, 4m top deck
Mass
ATM: 47t
- Semi B-Double Road Train
GTM:
- Airbag: 23.5t
Tare:
- 12.5t
Construction
- BS700 grade steel
- Flat Coaming Rail: 12mm BS700 grade plasma cut
- Flooring: 5mm BS700 grade
Axels
- KHitch Axles
Suspension
- KHitch/Weweler Airbag suspension
- Mechanical (spring) suspension available as custom order
Braking & Tyres
- Air Brake Corporation Braking System
- 19.5 tyres with 10 stud alloy rims (including 1 x spare)
Hydraulics
- Hydraulic Network cylinders with 12V power pack, remote & fixed control panel (alternative power pack options available)
Lighting
- Hella LED Lighting
Standard Features
- Galvanised Bi-fold ramps with pull out top deck.
- Bolt on 10mm Skid plate with 50mm bolt on King Pin (road train rated)
- Data Track Pro Hubometer
- Raise/Lower Valve
- 26 deck tie downs
- Gate pockets
- 2 speed landing legs
- Flashing Light
- Fitted Oversize Signs
- Sand blasted and painted in 2Pac Paint (Colours optional) complete with scrolls
- Chrome centre hubs and nut covers
- 4 lockable steel toolboxes (2 large, 2 small)
- Aluminium water tank
- Removeable flag holders
- Tyre carrier cut through main rail
- Side steps cut in
- 3-way twist lock and chassis mounted pedestals
- Road Train Lead (excluding ringfeder)
- 12 month warranty
Interested in a Mammoth Transport Equipment
Drop Deck Widener?
Lets talk about your next trailer.
