About the Quad Low Loader Trailer
Improving on the payload available, this trailer that can widen from 2.5m to 3.7m, delivering performance for heavy haulage.
The Quad design takes productivity to the next level maximising payload per trip, the Quad lowers fuel, labour, and maintenance costs, turning heavy loads into smarter savings.
Quad Low Loader Benefits
The Quad Low Loader maximises heavy-haul efficiency, adapts easily to oversized loads, and delivers a tough, work-ready build for demanding transport jobs.
- Maximised Heavy-Haul Productivity
Its quad-axle design and high payload capacity (up to 62 t ATM) help you carry more per trip, reducing fuel, labour, and maintenance costs. - Adaptable Load Handling
The trailer widens from 2.5 m to 3.7m, improving flexibility for transporting wider machinery or equipment. - Robust, Work-Ready Build
Built with BS700 grade steel, steerable axles, airbag suspension, quality lighting and tie-down points, it’s engineered for reliable performance in demanding conditions.
Cost Effective
High Quality
Family Owned and Run

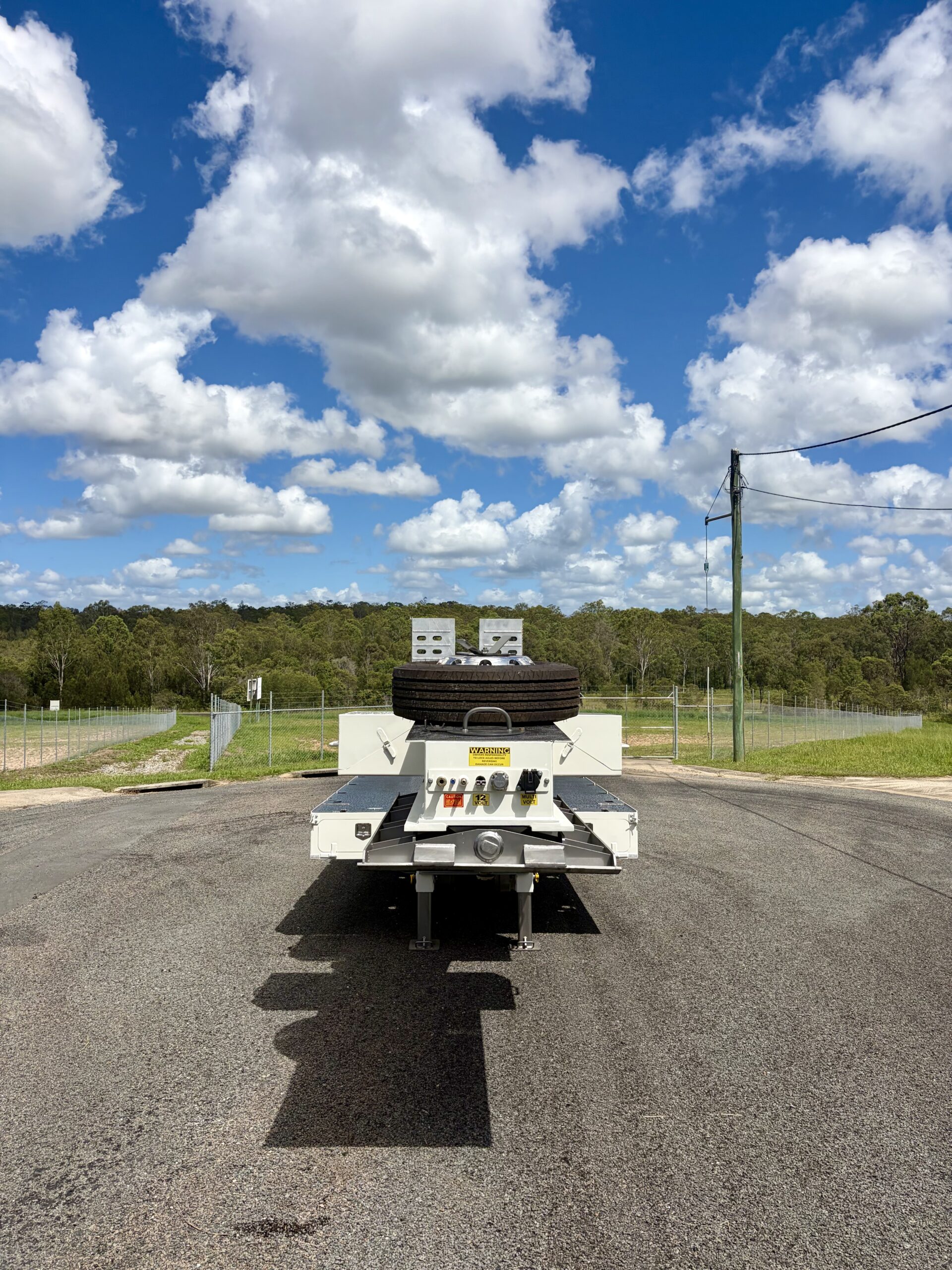

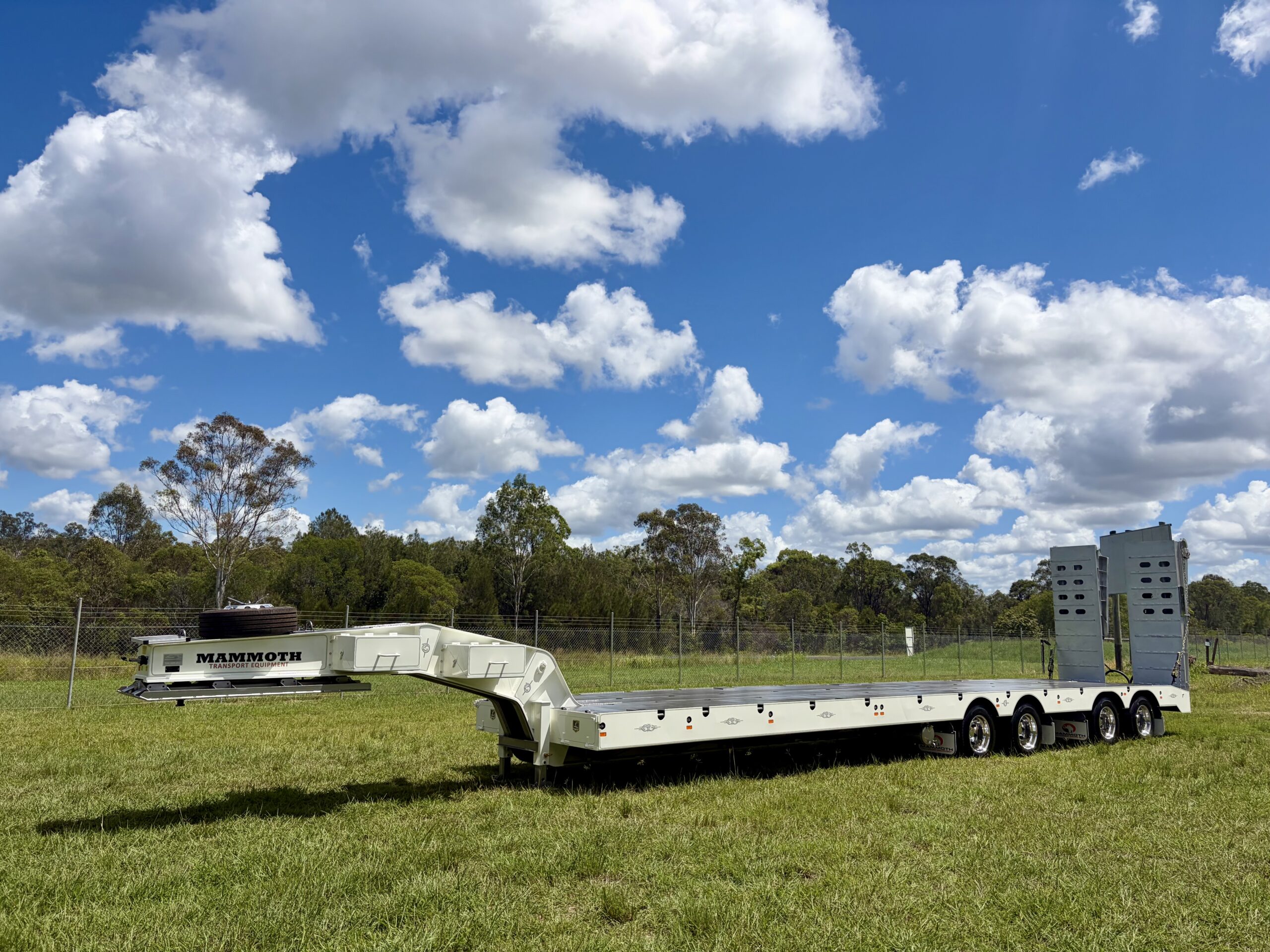

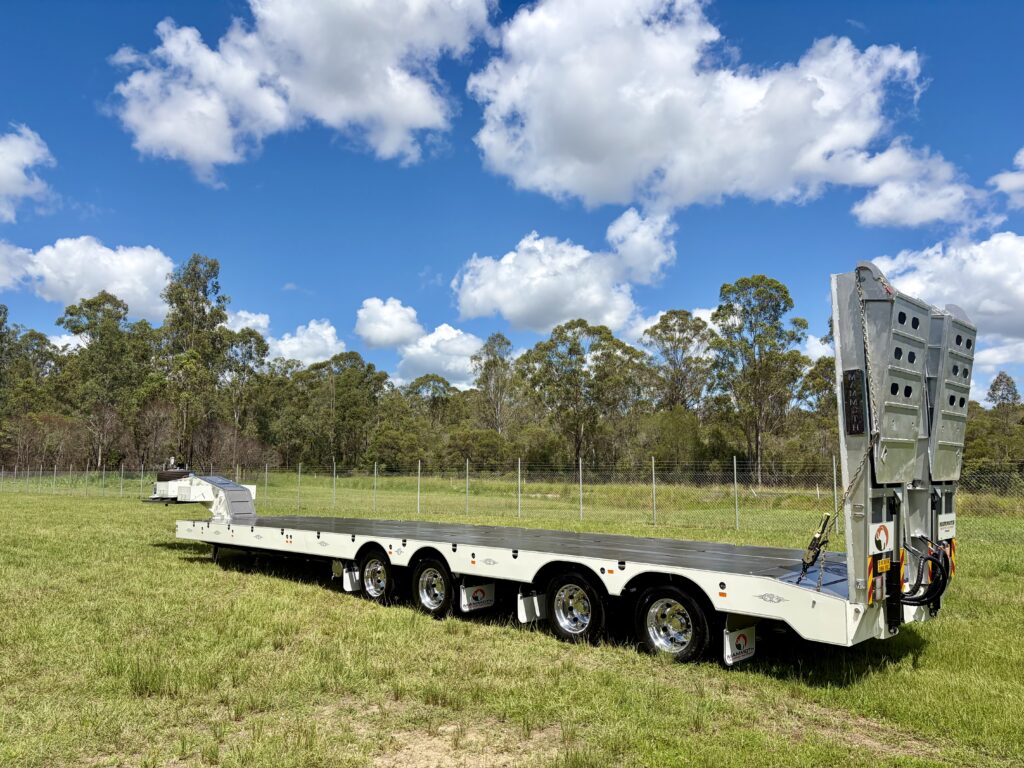

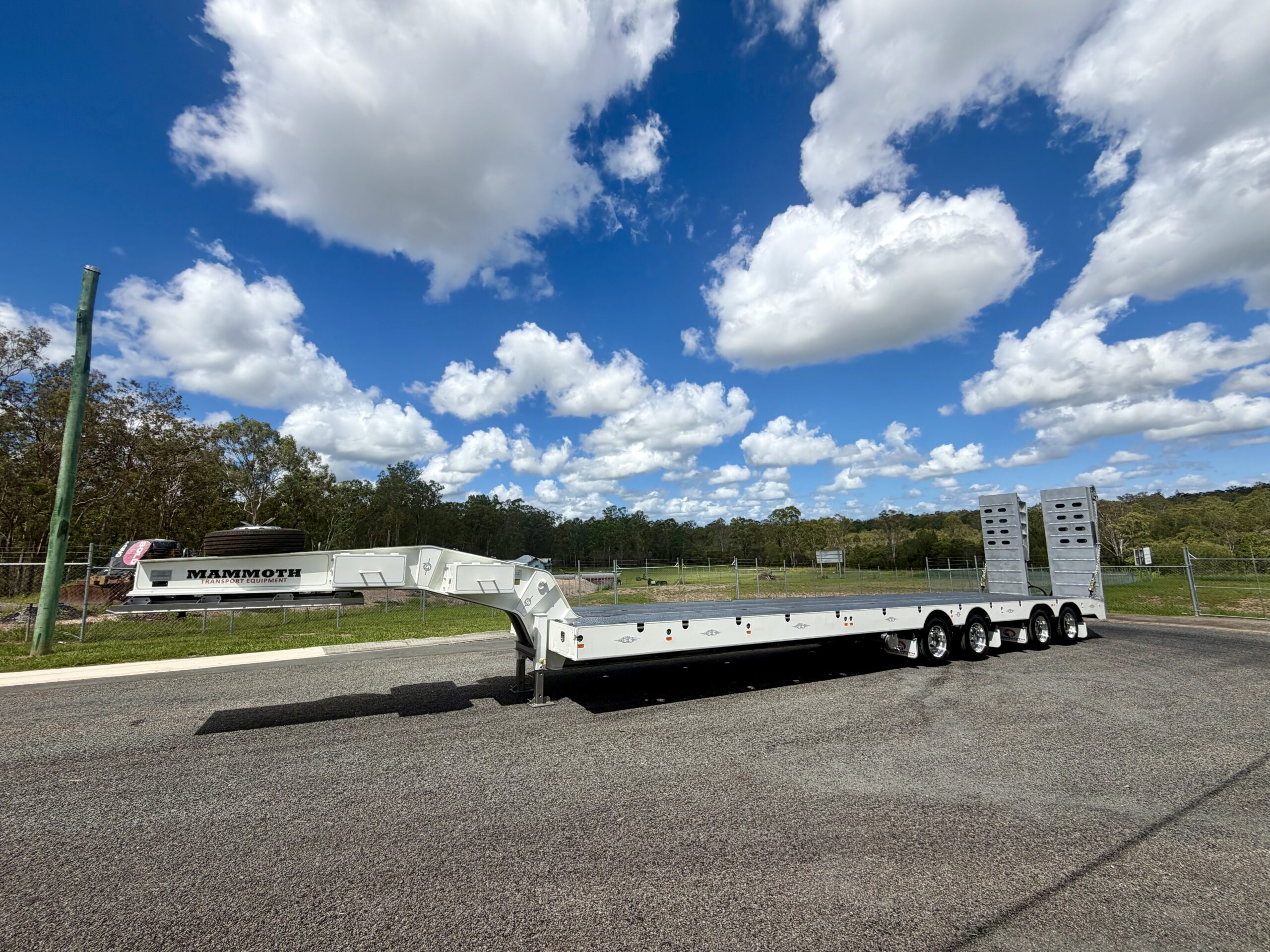

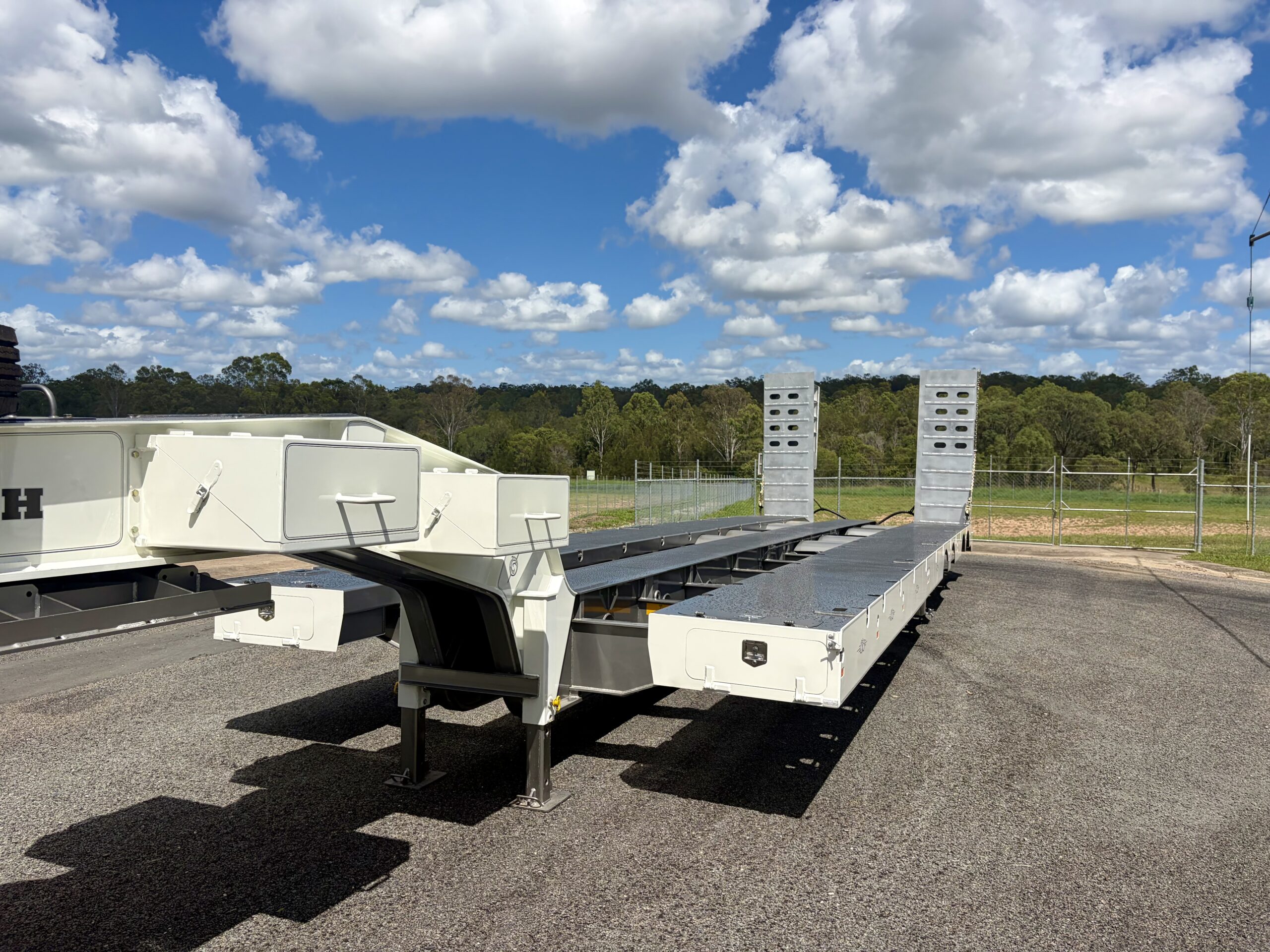

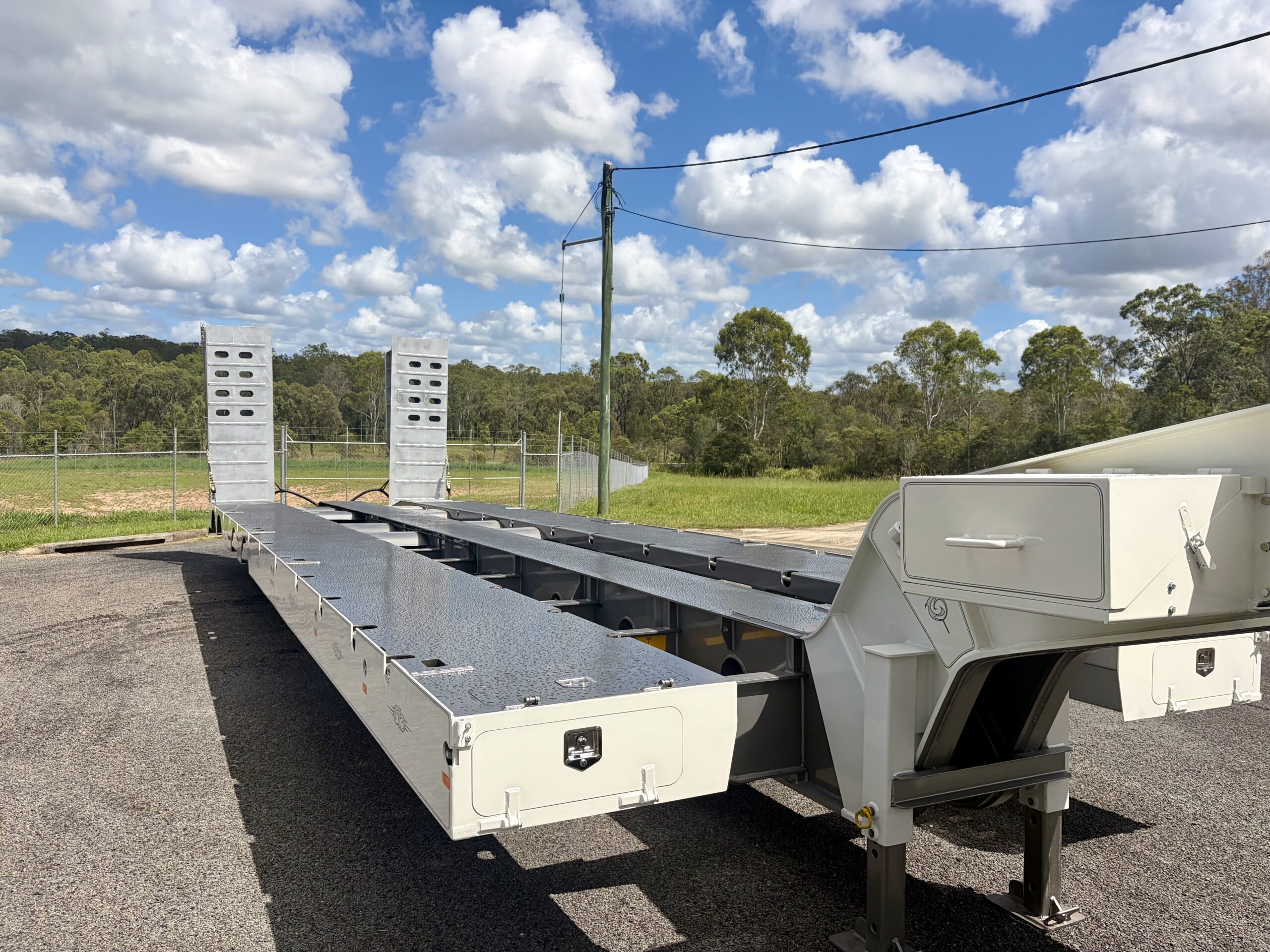

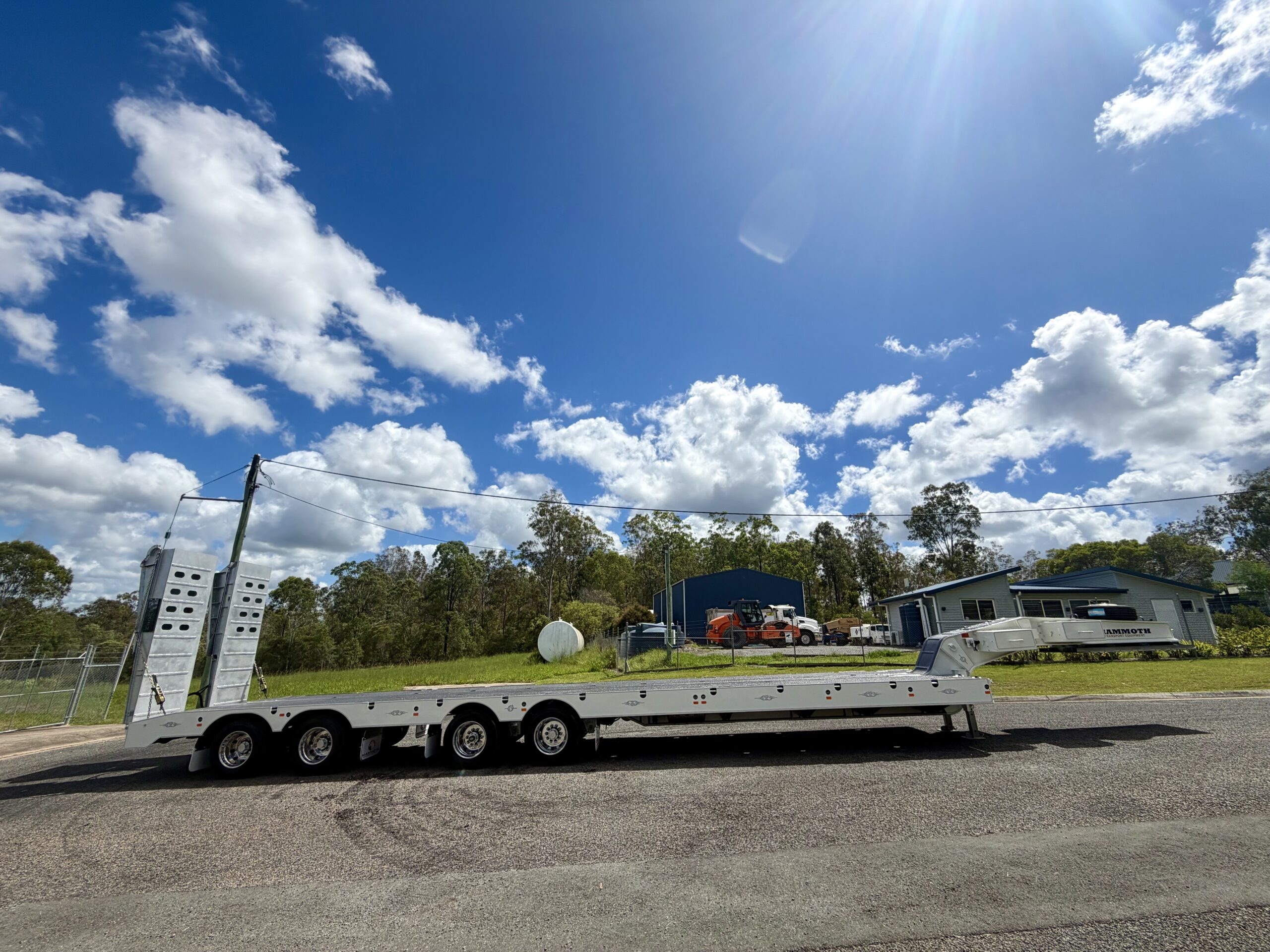

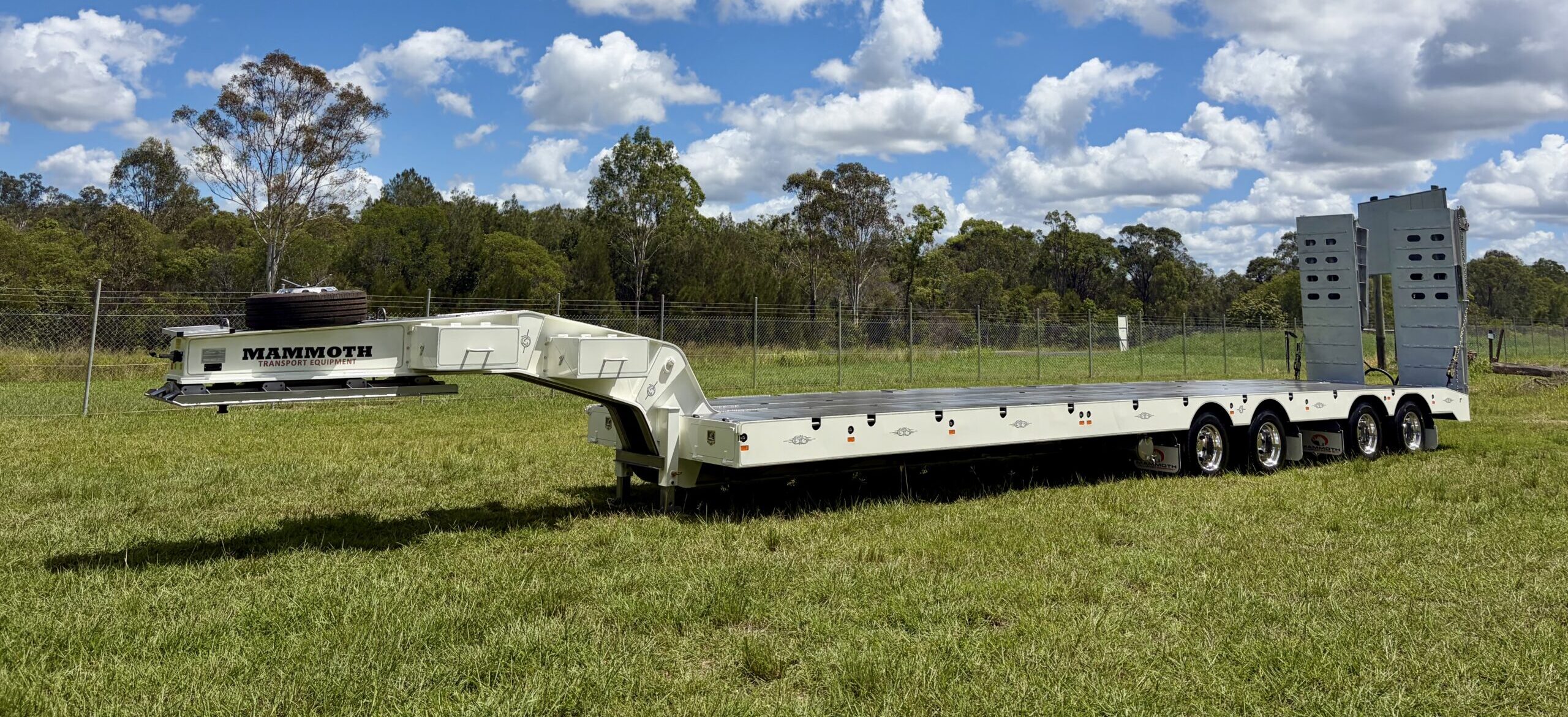

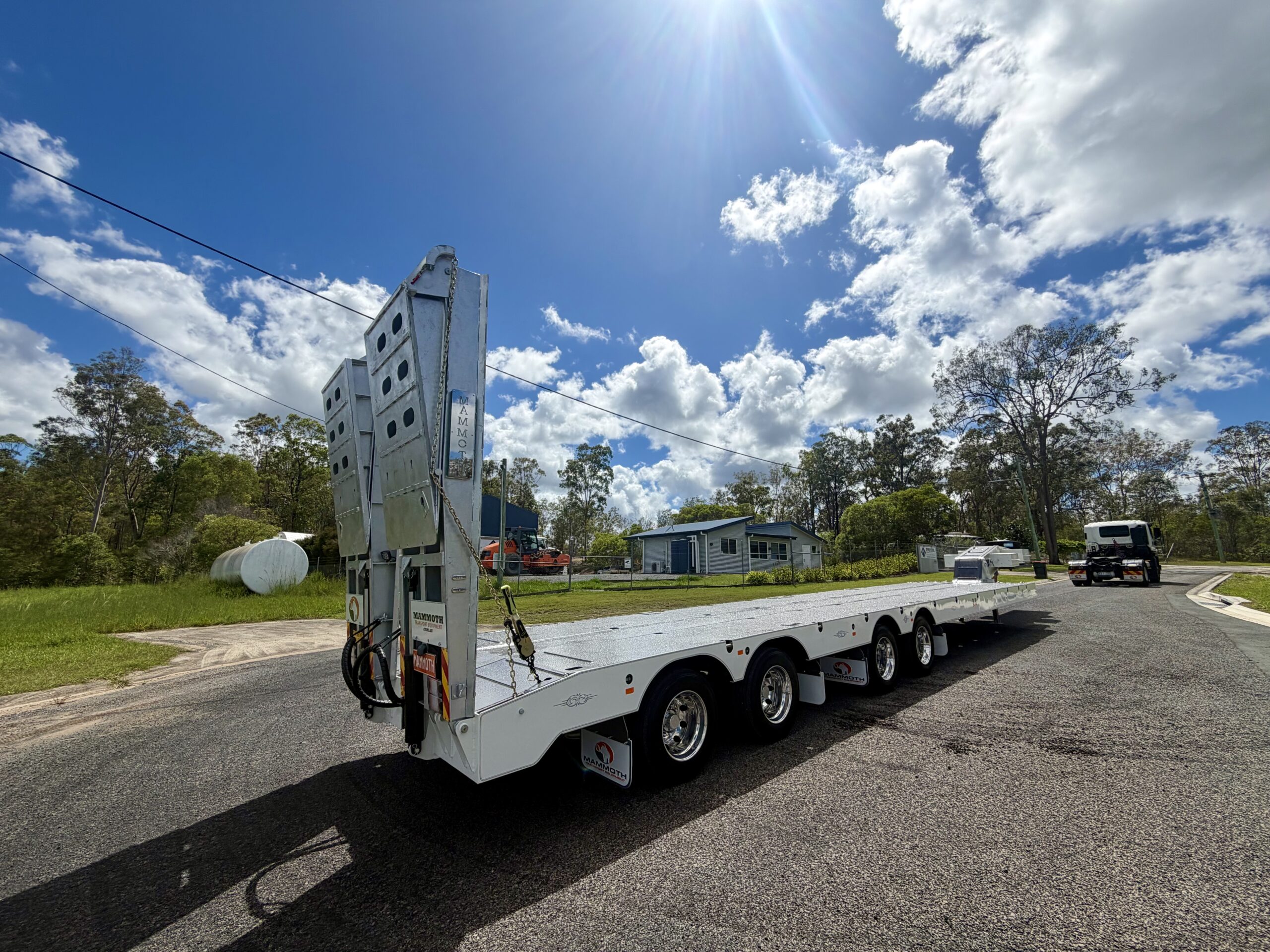

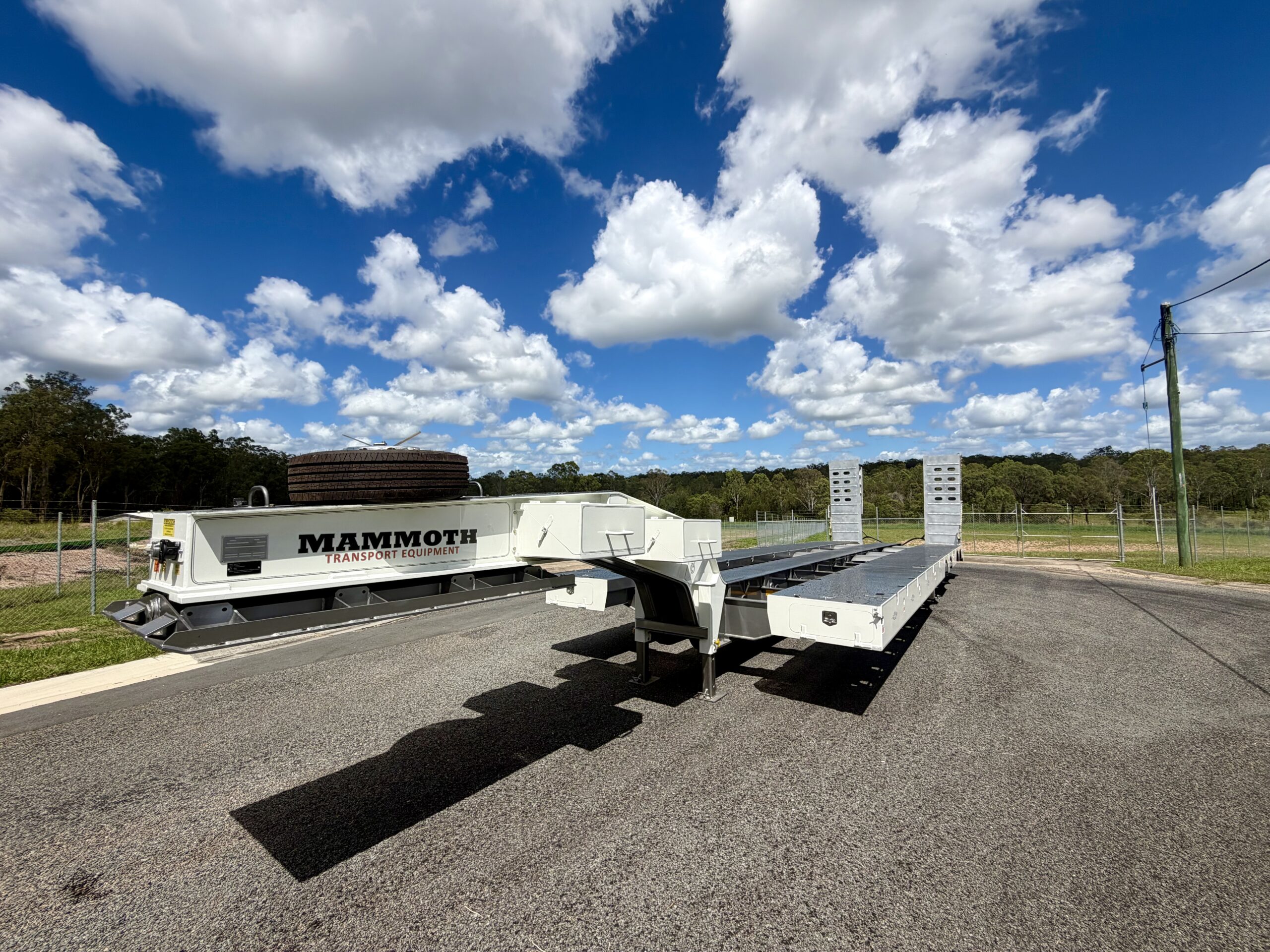

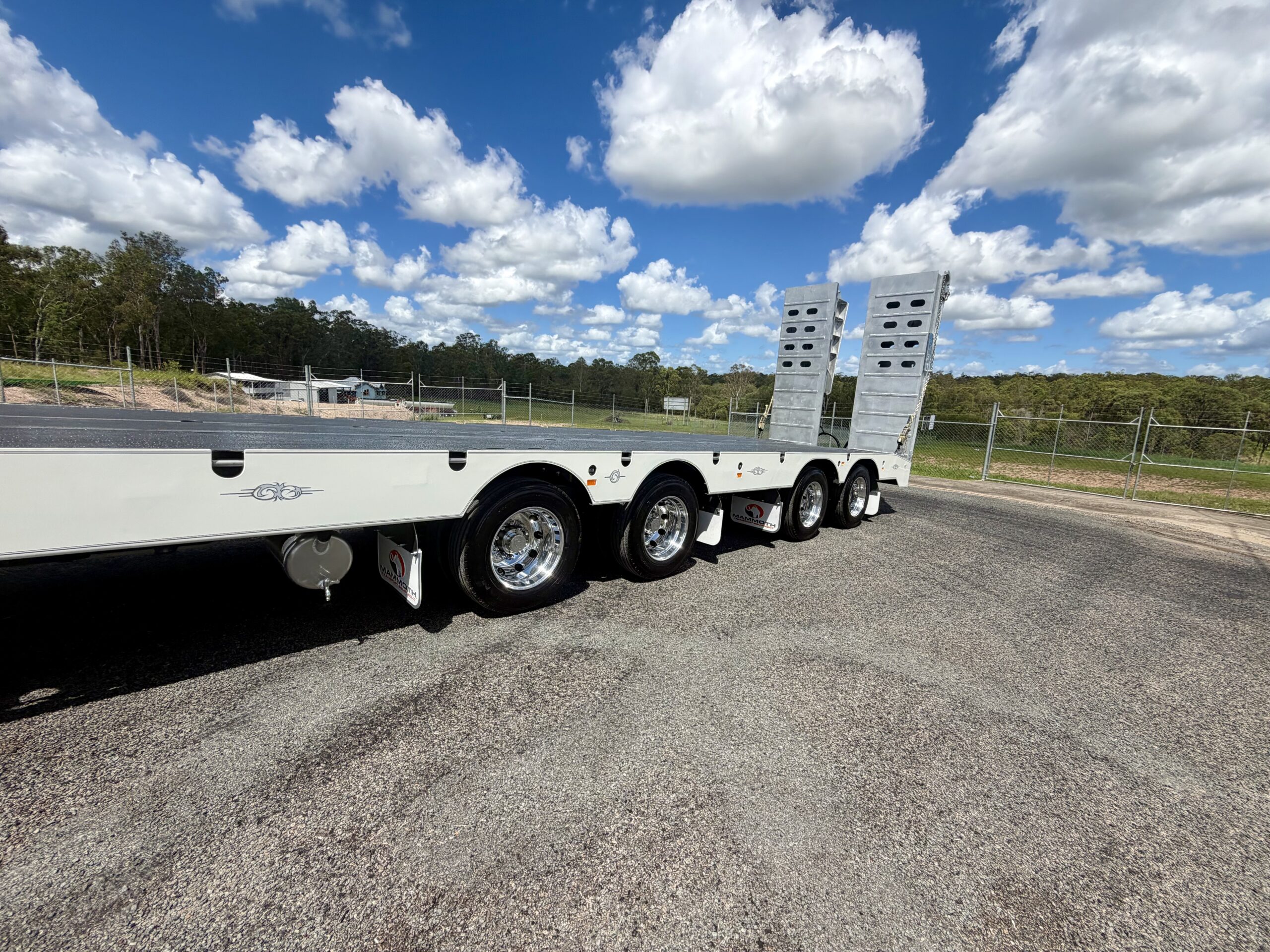

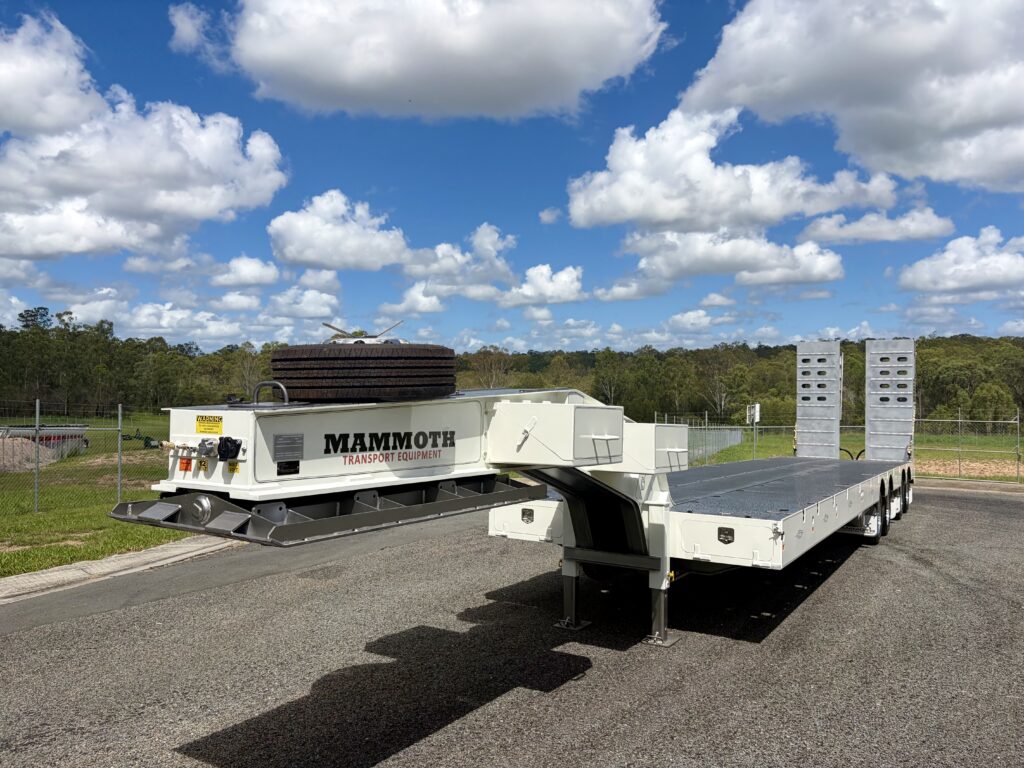

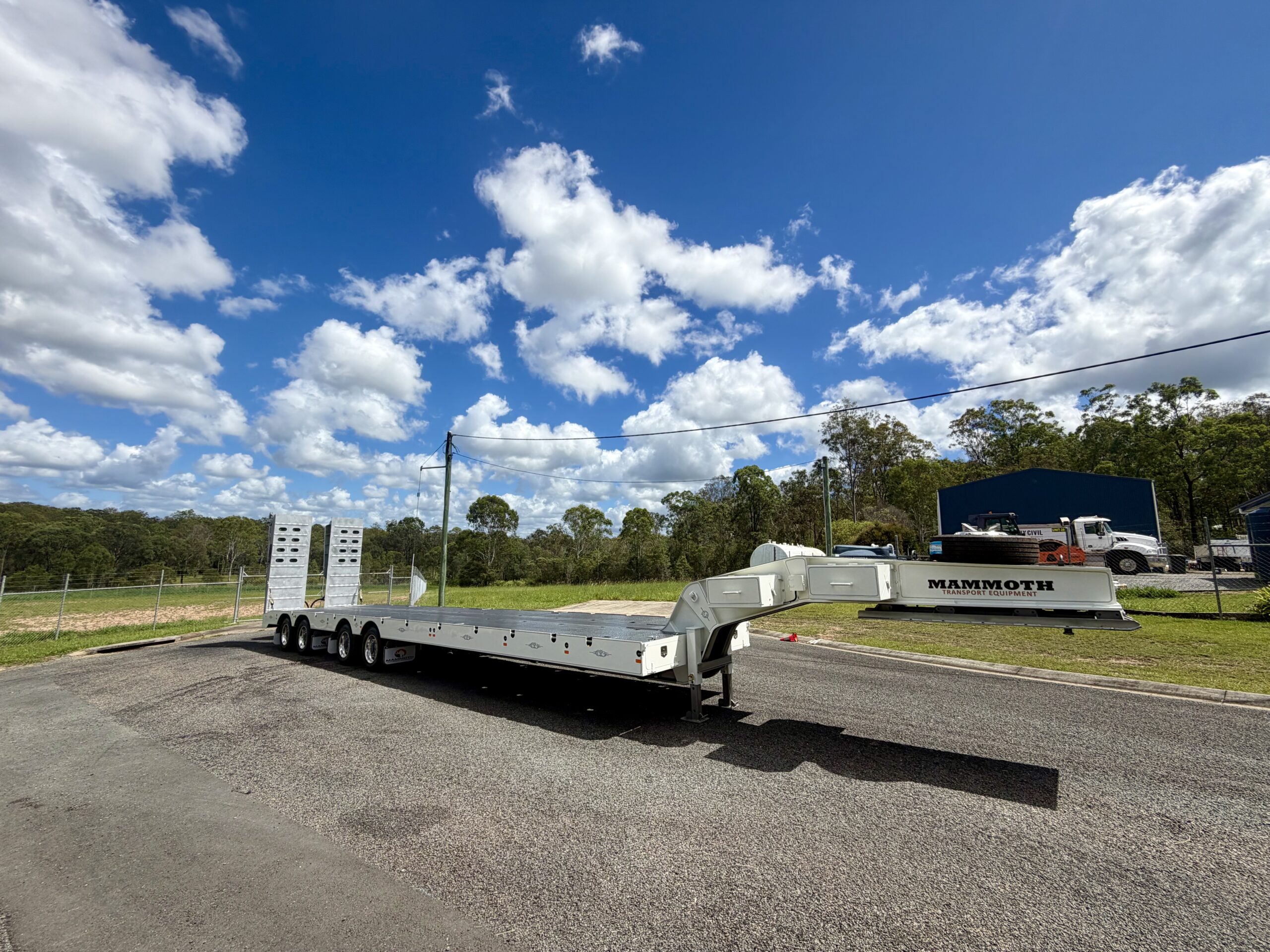

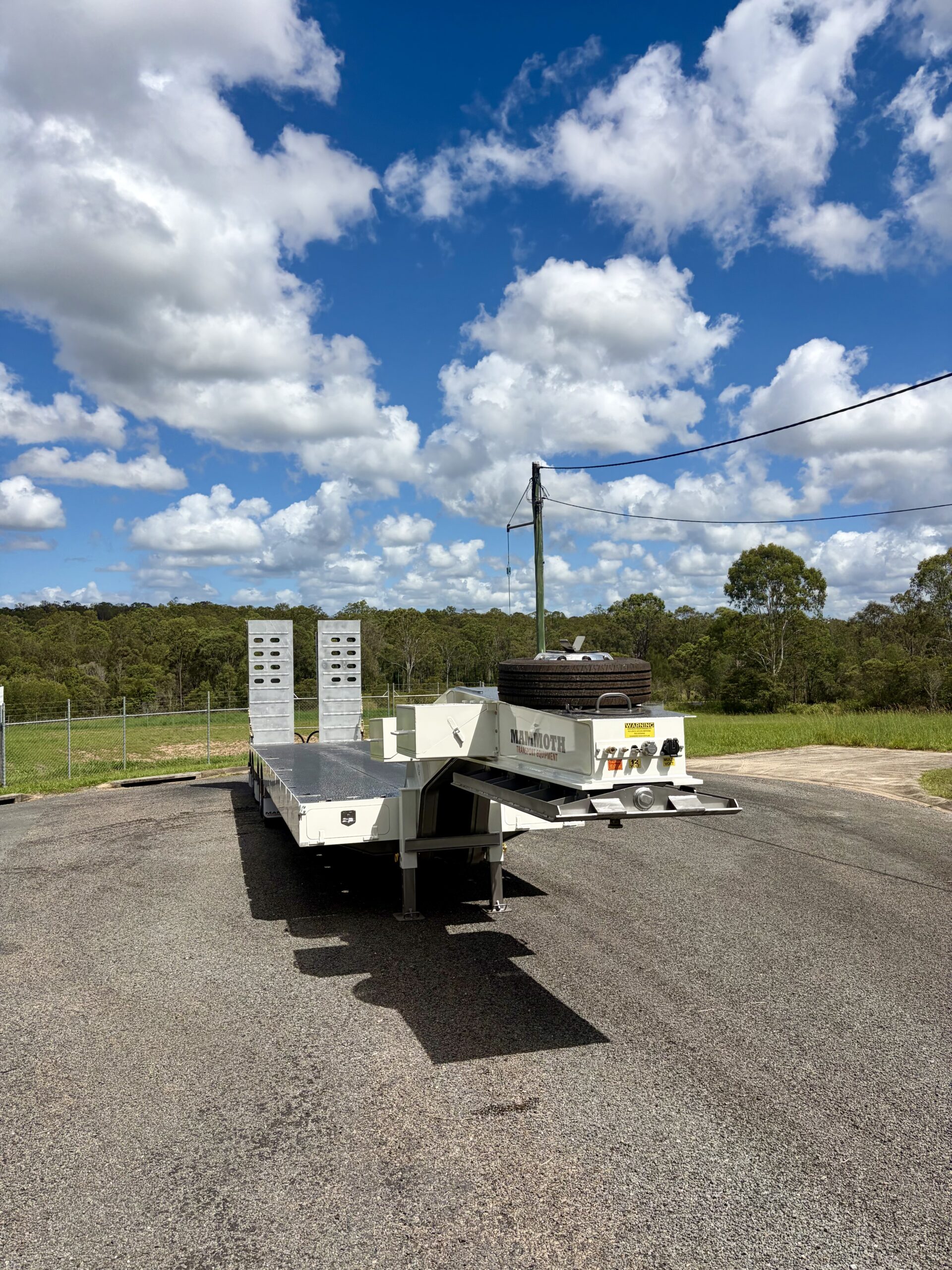

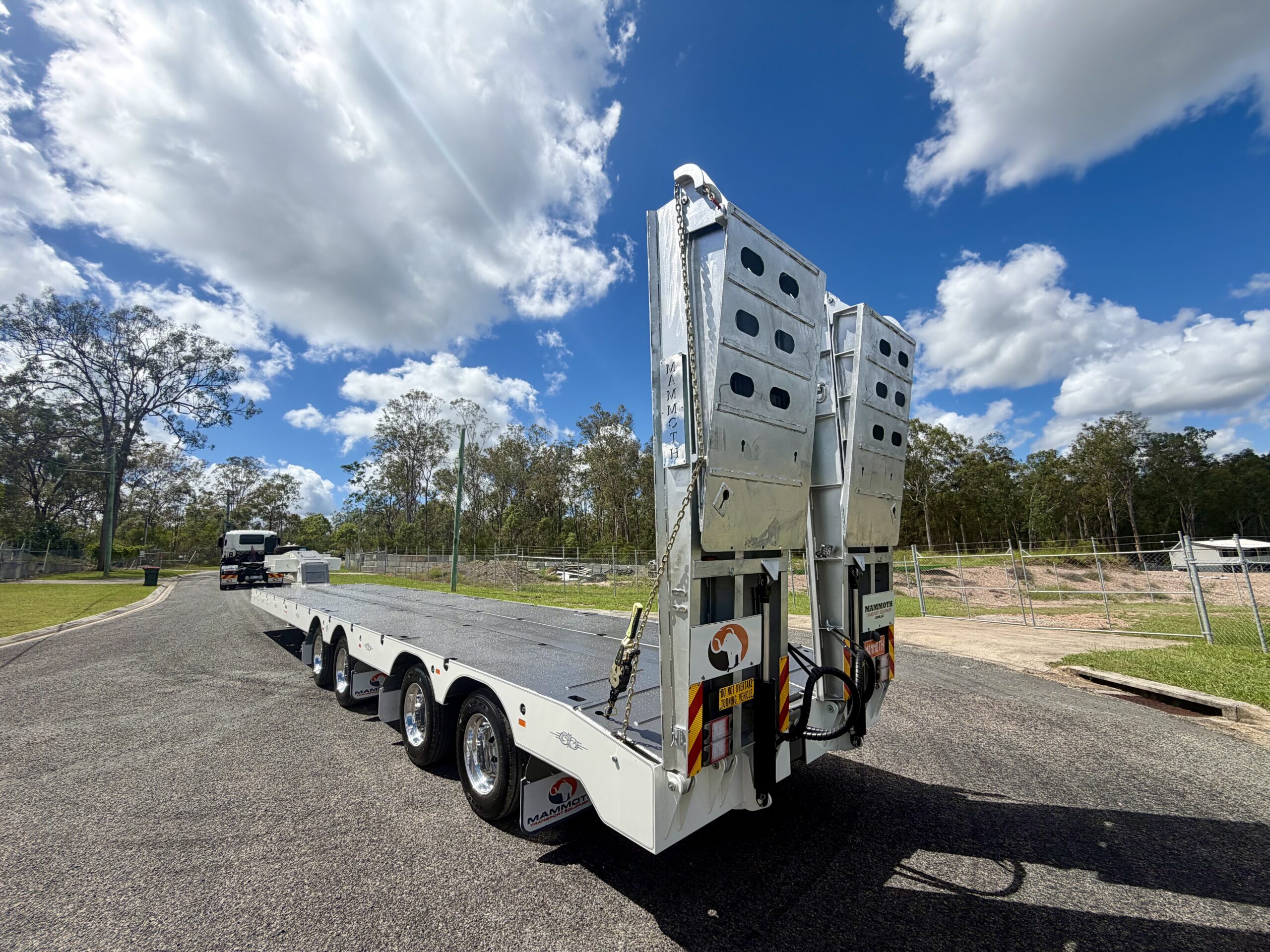

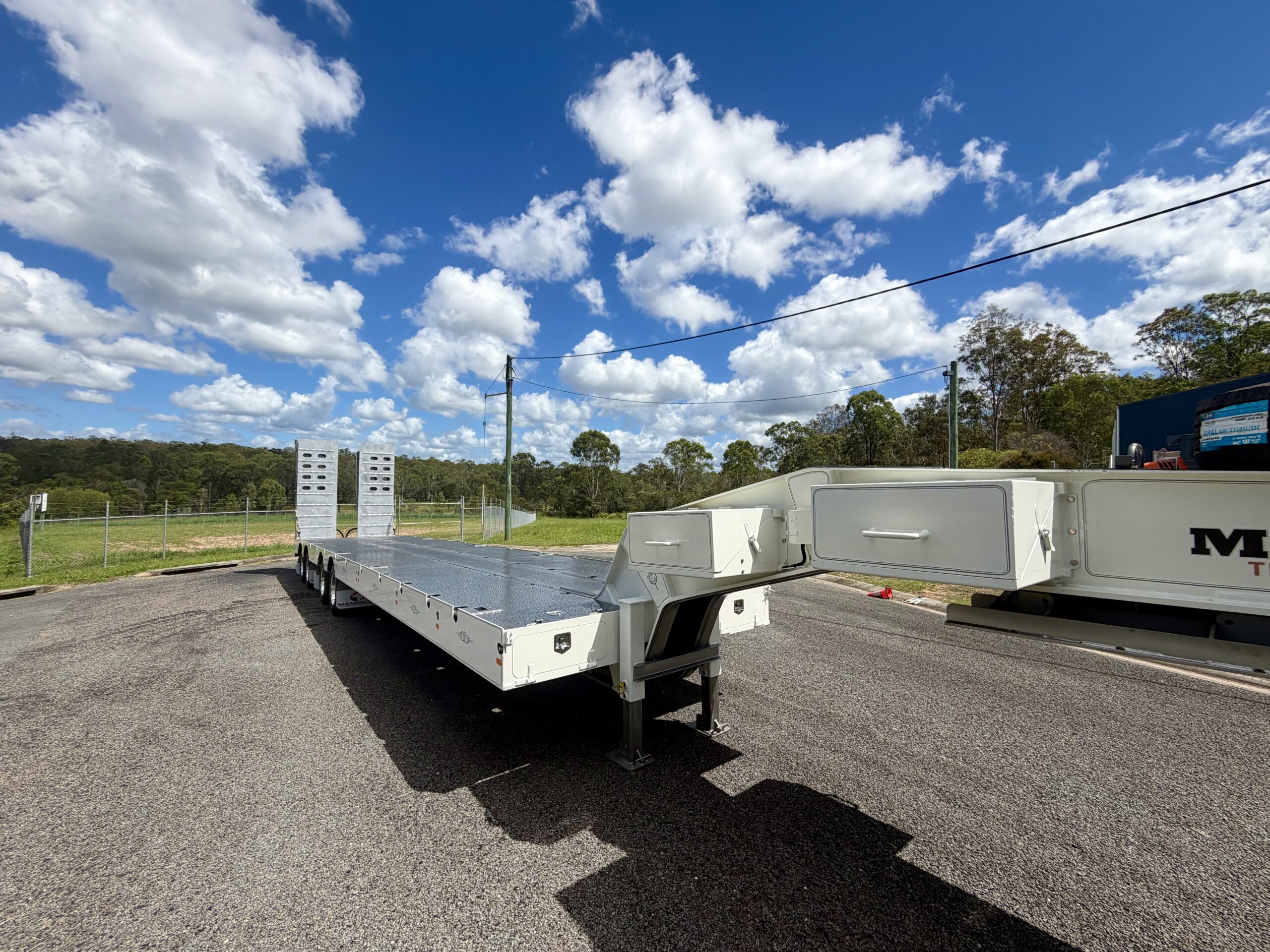

Quad Low Loadeer Gallery
Technical Specifications
Dimensions
- Width 2.5m to 3.7m
- 12.5m Deck Length
Mass
- ATM: 62t
- GTM: Airbag: 36t
- Tare: 14.5t
Construction
- BS700 grade steel
- Flat Coaming Rail: 10mm BS700 grade plasma cut
- Flooring: 5mm BS700 grade
Axles
- KHitch Axles
- 2 x Steerable Rear Axles with accessories activated locking (alternative locking options can be arranged)
Suspension
- KHitch/Weweler Airbag suspension
Braking & Tyres
- Air Brake Corporation Braking System
- 19.5 tyres with 10 stud alloy rims (including 1 x spare)
Hydraulics
- Hydraulic Network cylinders with 12V power pack, remote & fixed control panel (alternative power pack options available)
Lighting
- Hella LED Lighting
Standard Features
- Galvanised Bi-fold ramps with pull out top deck.
- 2 position oscillating skid plate with drop in King Pin
- Data Track Pro Hubometer
- Raise/Lower Valve
- 34 deck tie down points
- Gate pockets
- Drop down landing legs
- Flashing Light
- Fitted Oversize Signs
- Sand blasted and painted in 2Pac Paint (Colours optional) complete with scrolls
- 4 lockable steel toolboxes (2 large, 2 small)
- Aluminium water tank
- Removeable flag holders
- Tyre carrier (gooseneck mounted)
- Drop in twist locks
- 12 month warranty
Interested in a Mammoth Transport Equipment
Quad Low Loader?
Lets talk about your next trailer.
