About the Side Tipper Trailer
The Side Tipper is designed for efficient material discharge, it has a 47-tonne ATM, with the A trailer having a 5.3m bin length and 16m³ Capacity and B trailer having a 8.7m bin length, 23m³ Capacity, PTO setup with rubber hinge and single action door.
Side Tipper Benefits
The Side Tipper delivers fast, efficient unloading, heavy-duty load capacity, and reliable construction built for tough bulk-haulage work.
- Efficient & High-Capacity Material Discharge
With an 8.7 m bin and 23 m³ capacity, the side tipper is built to move and discharge bulk materials quickly and efficiently. - Strong Heavy-Duty Performance
It features a 45-tonne ATM and robust construction with quality components, making it suitable for demanding transport jobs and heavy loads. - Reliable Operation & Ease of Use
Equipped with a PTO system, rubber hinge, and single action door, it offers dependable performance and smoother unloading, enhancing productivity on the job.
Cost Effective
High Quality
Family Owned and Run

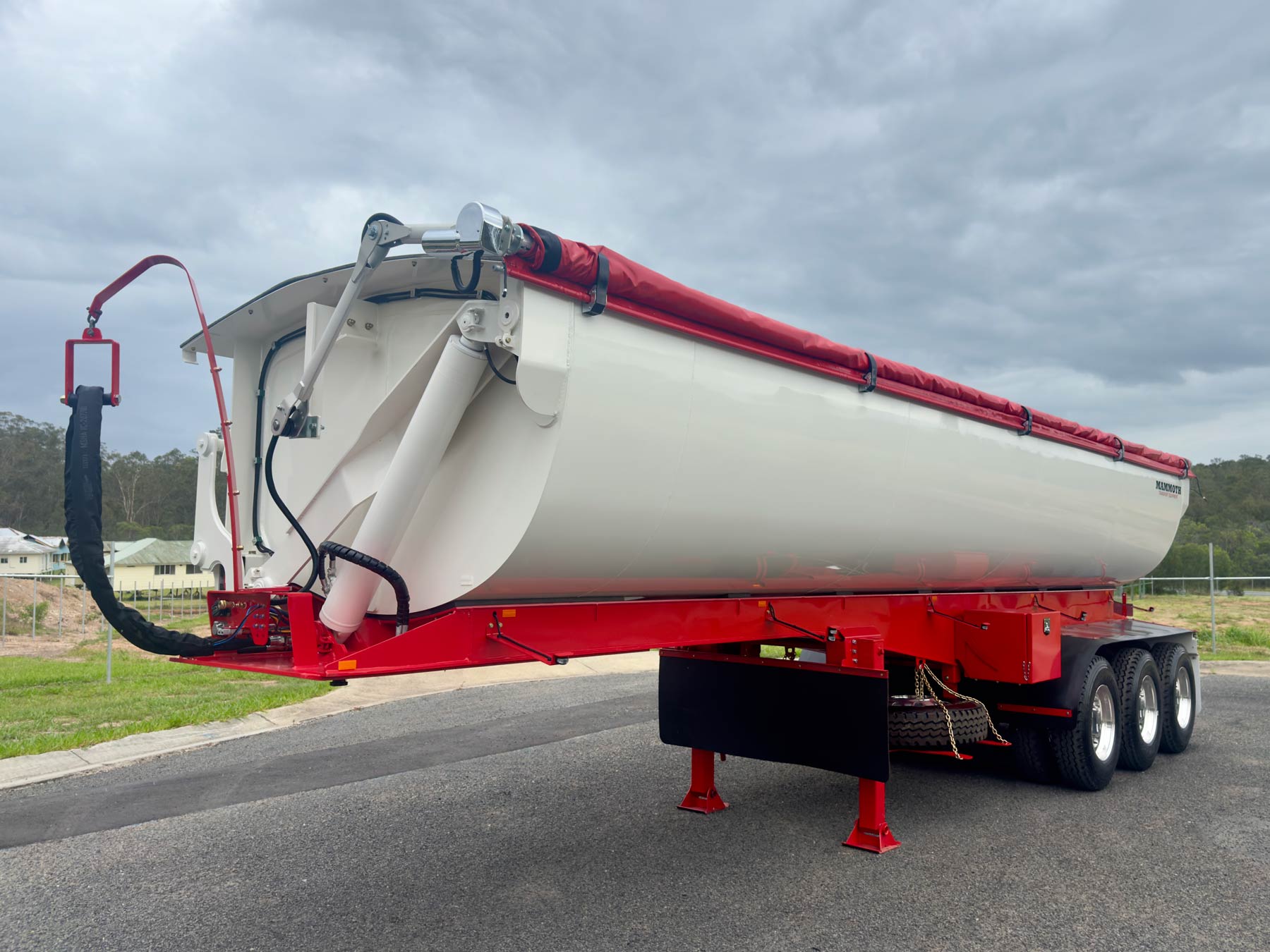

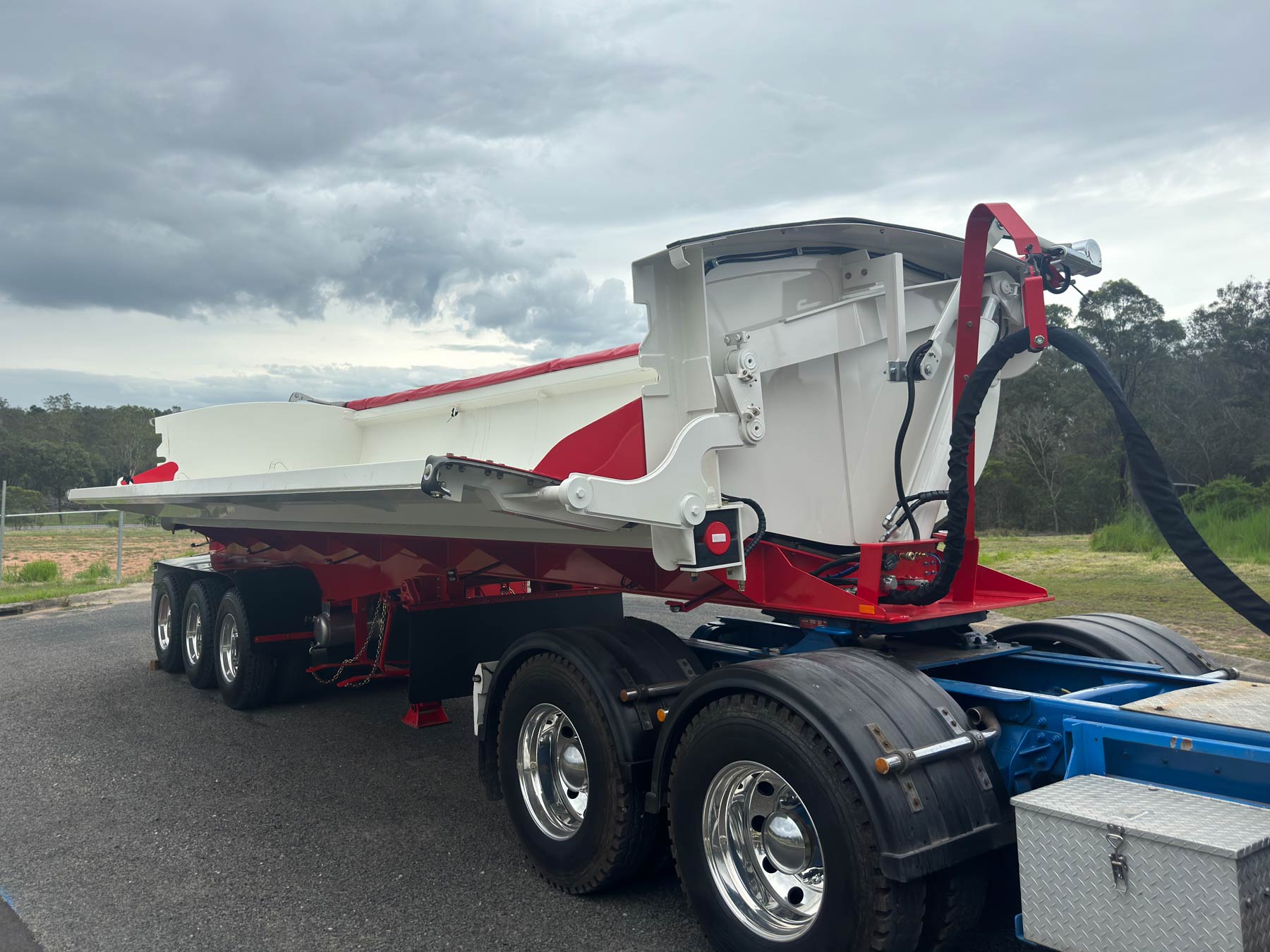

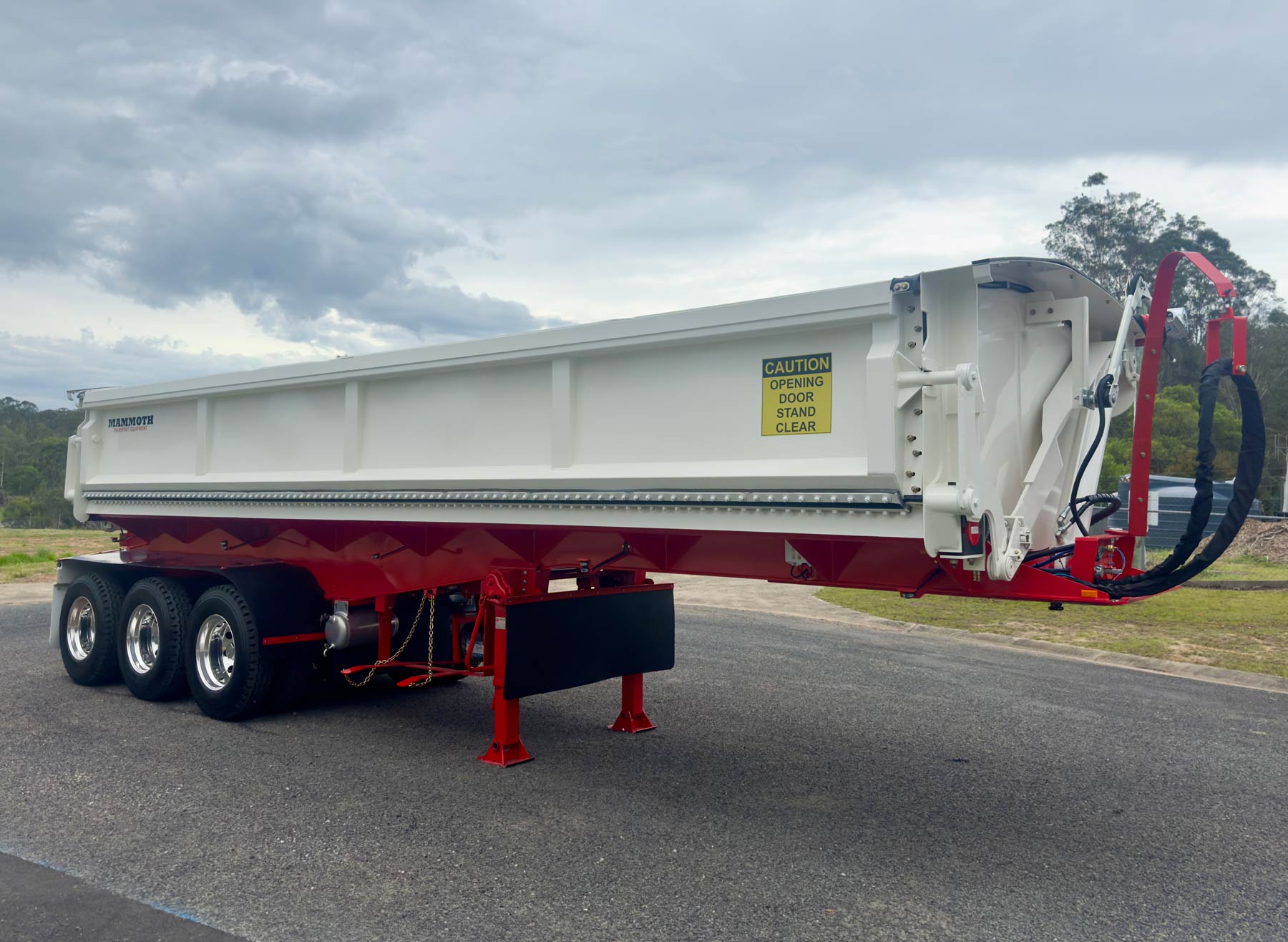

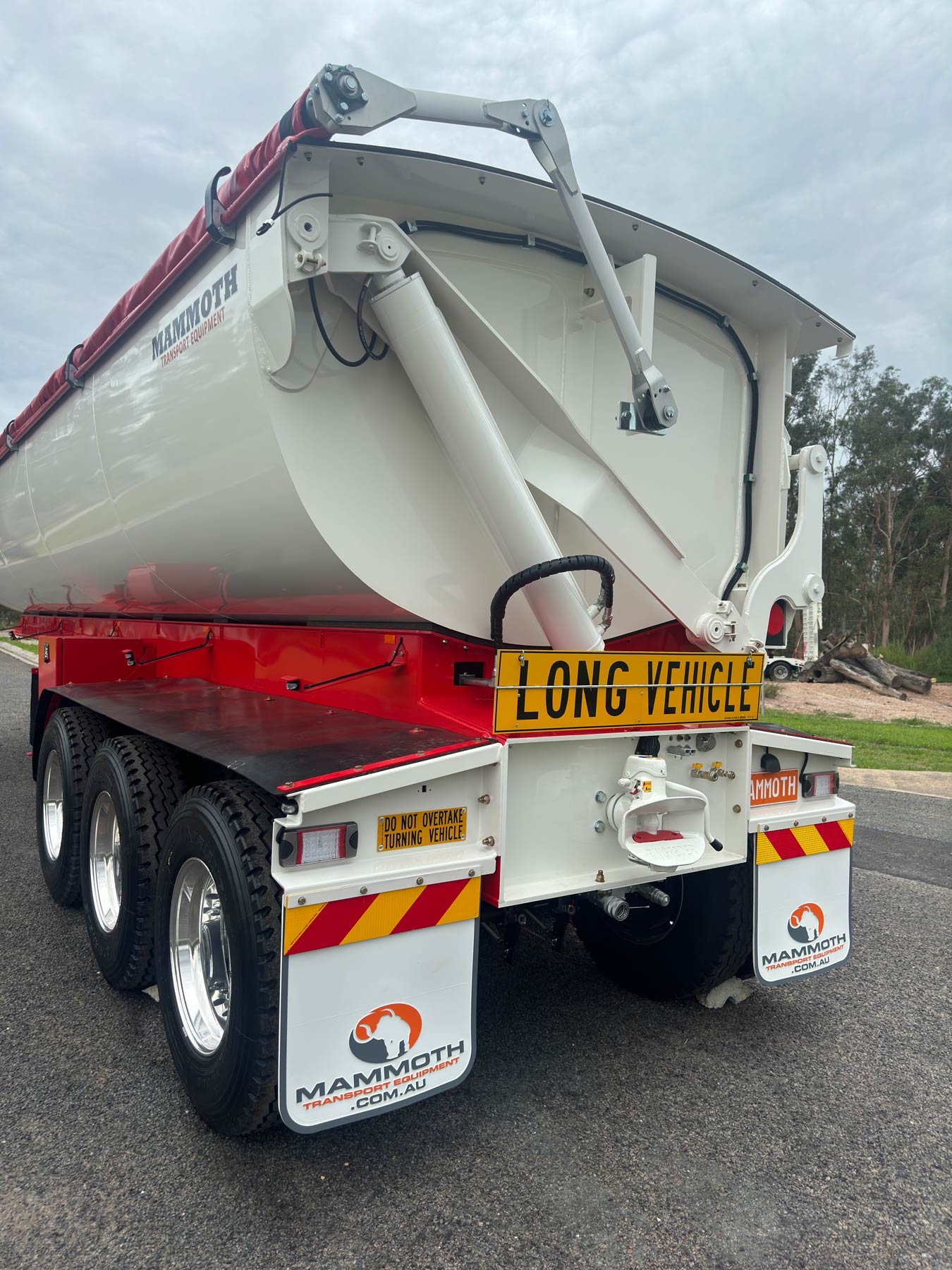

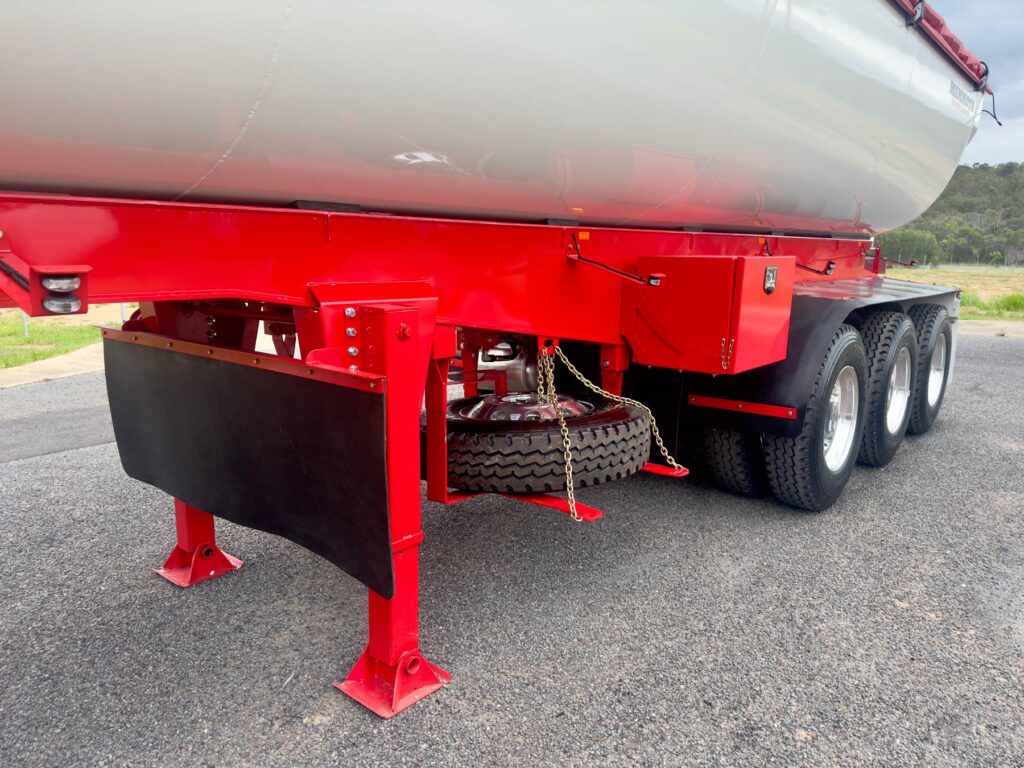

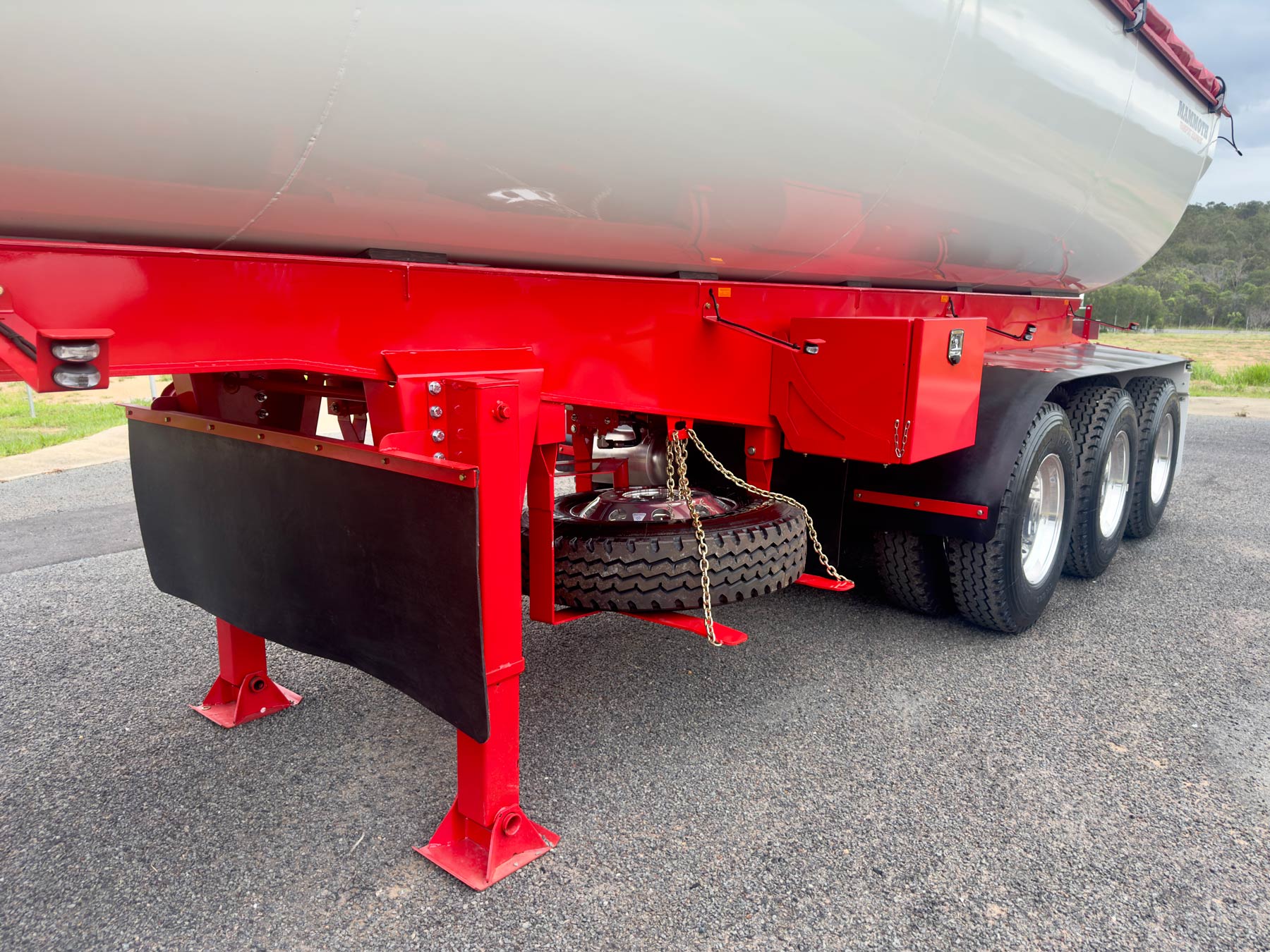

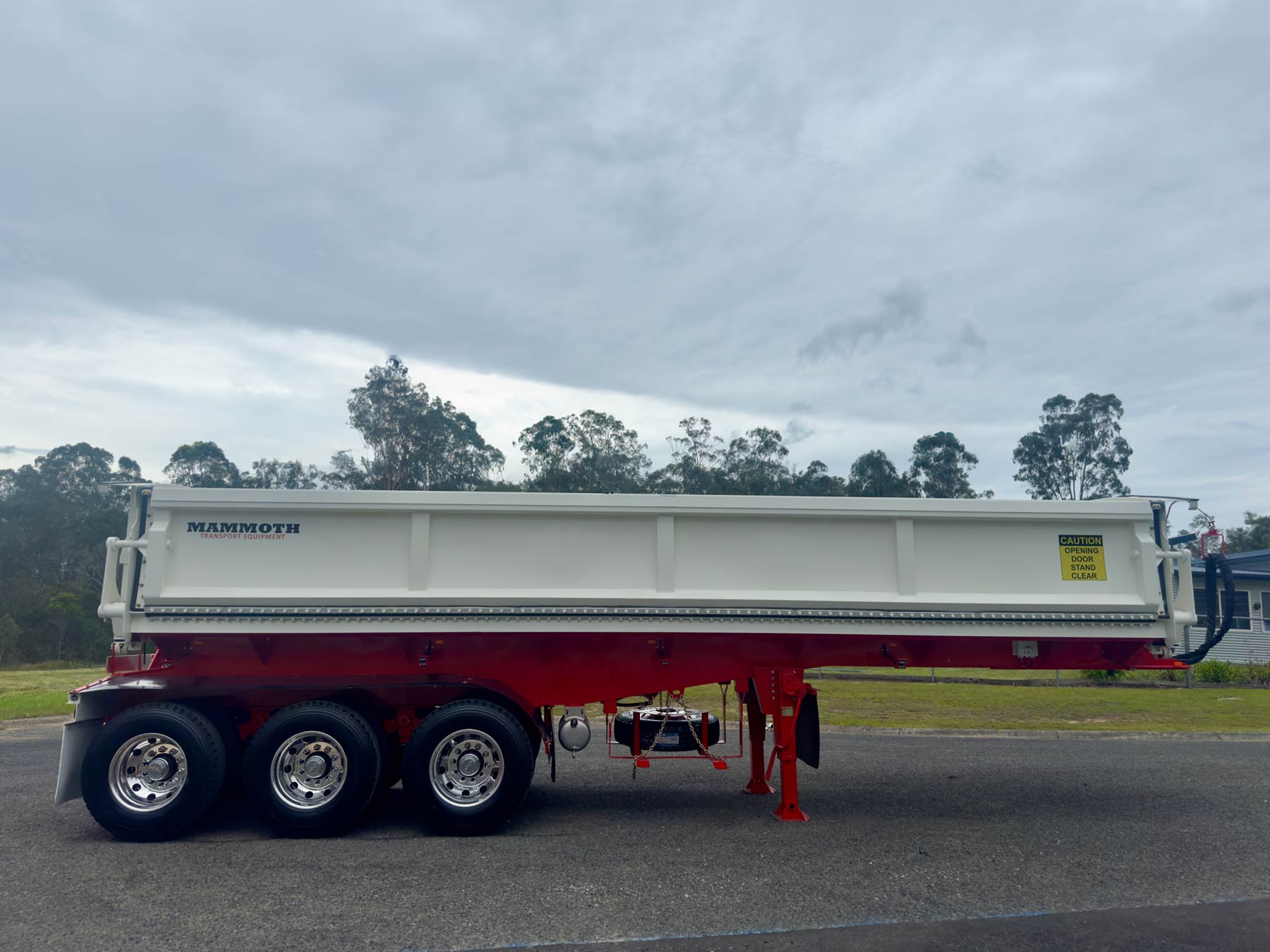

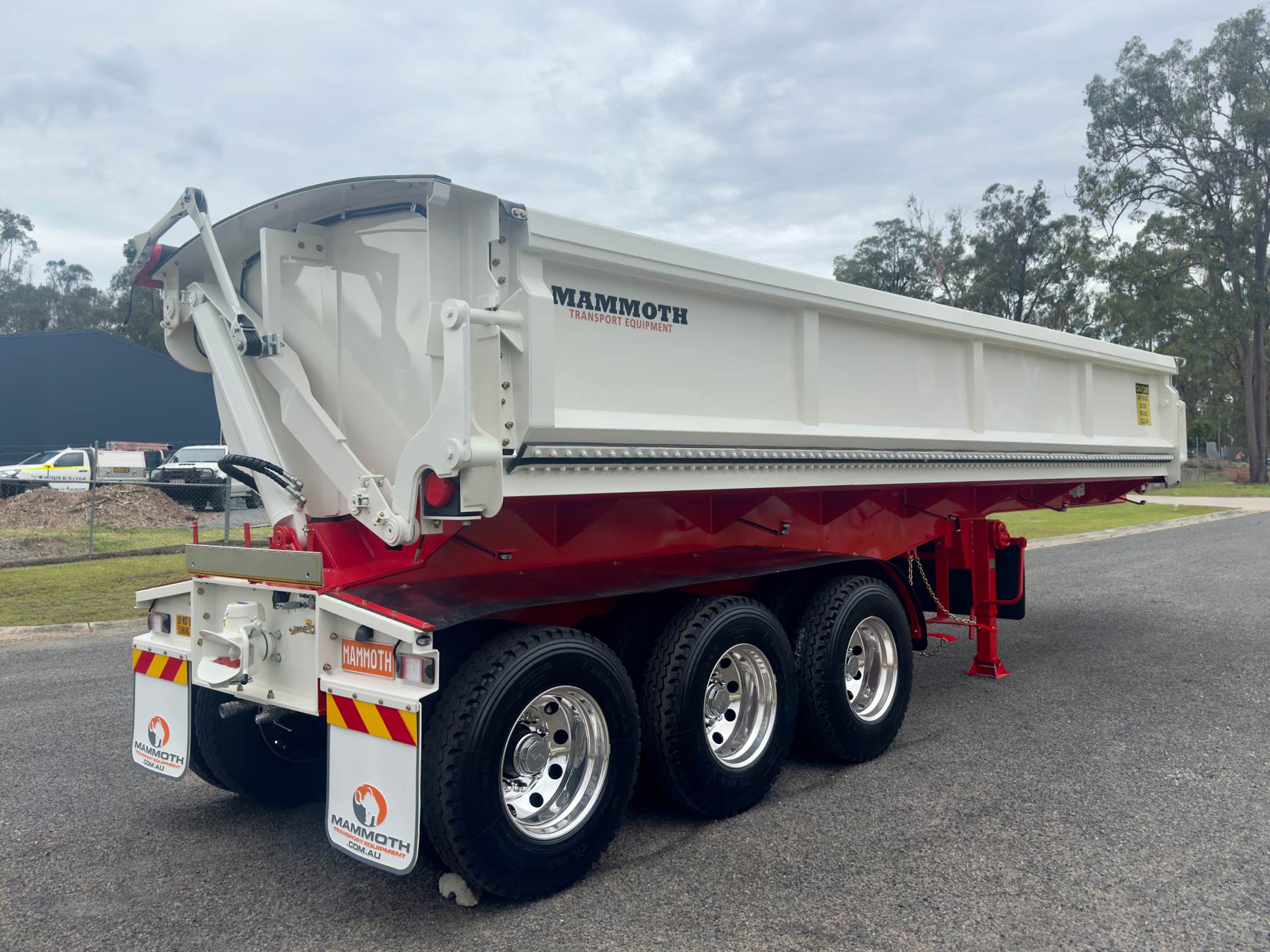

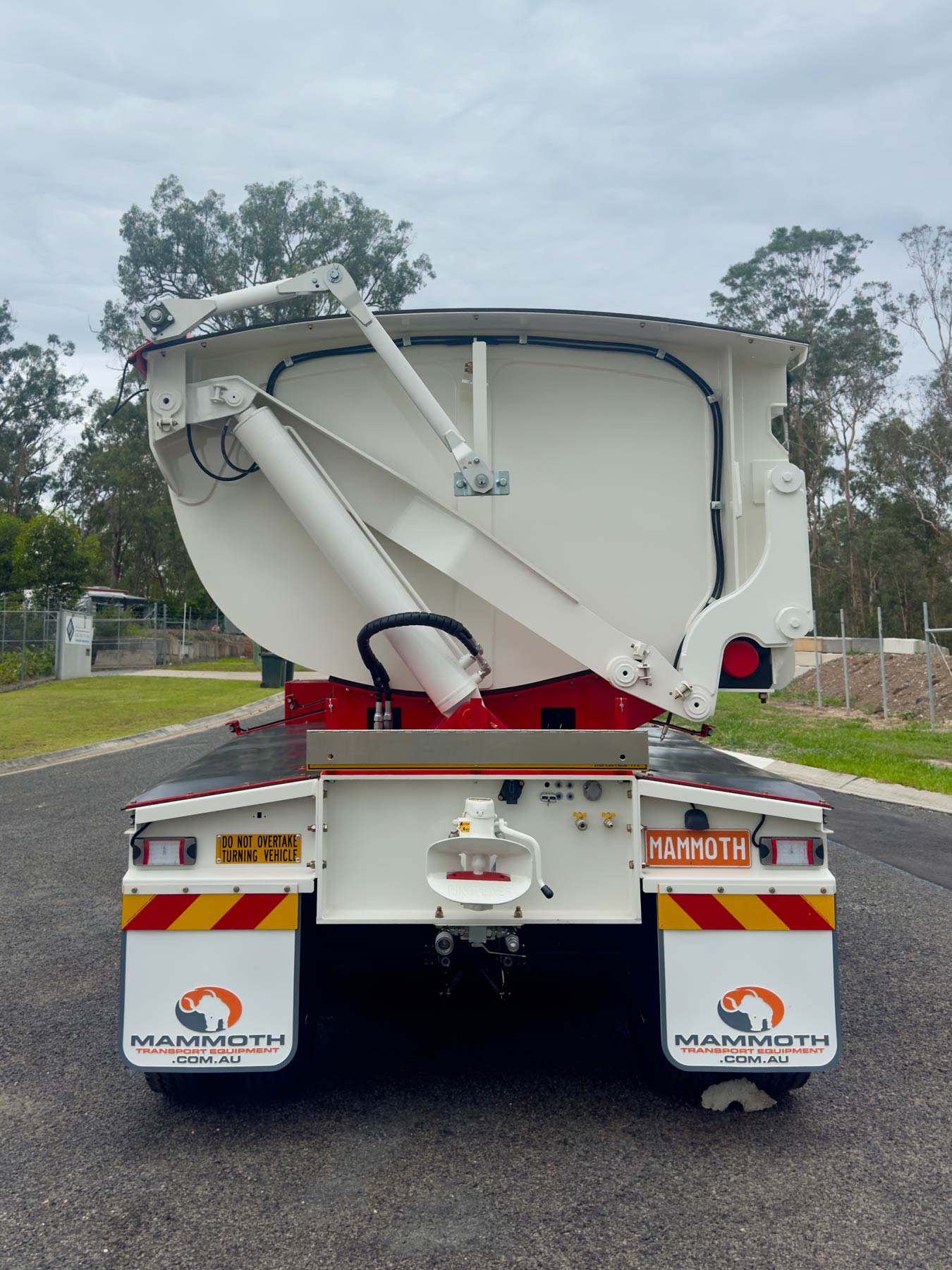

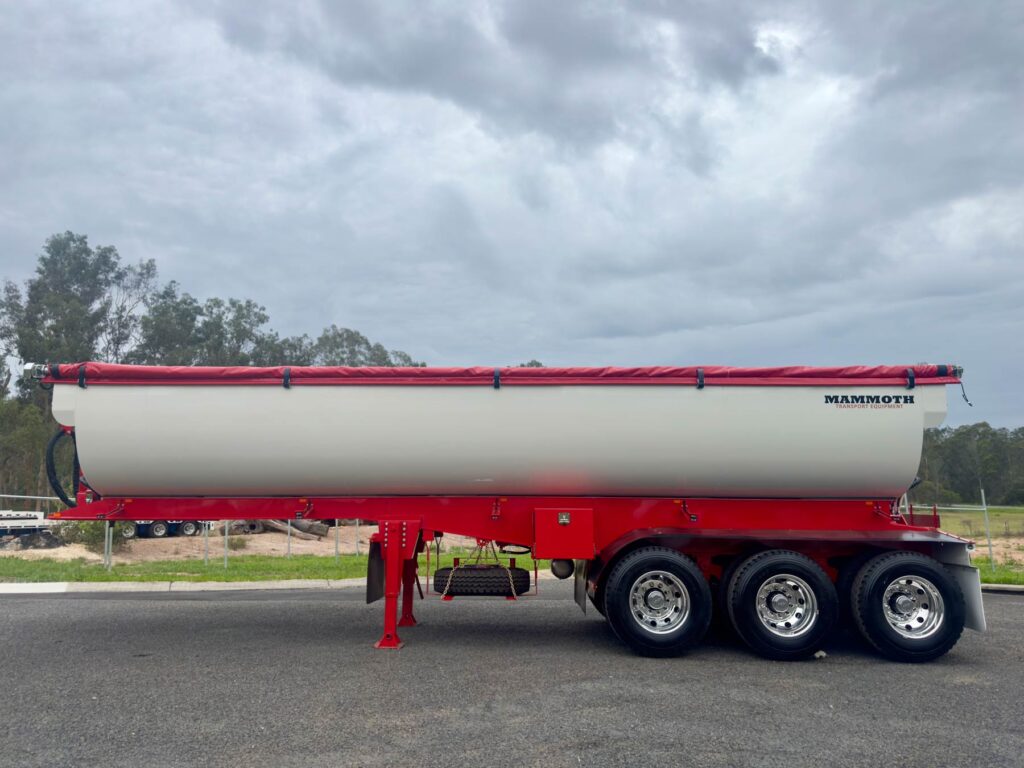

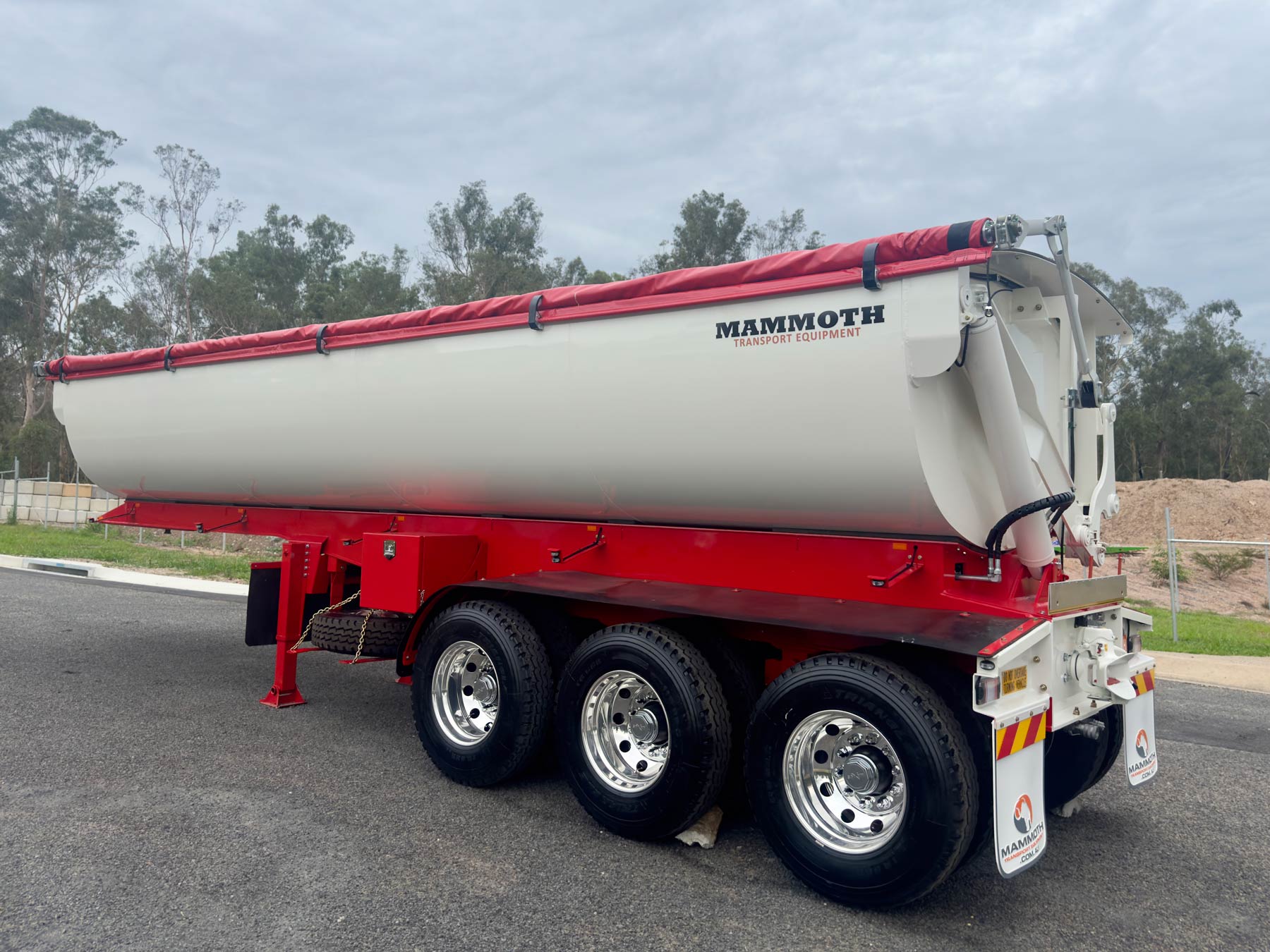

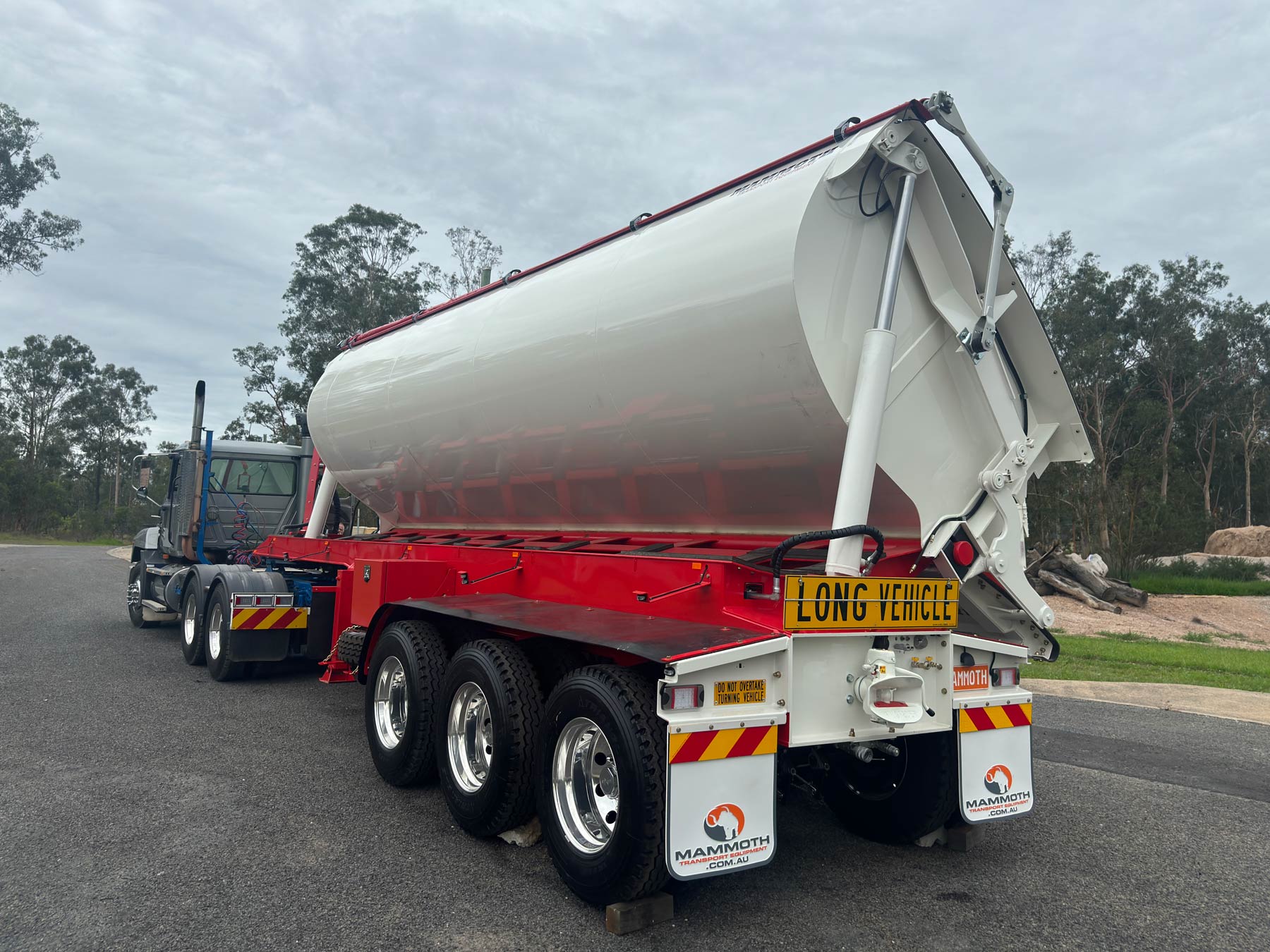

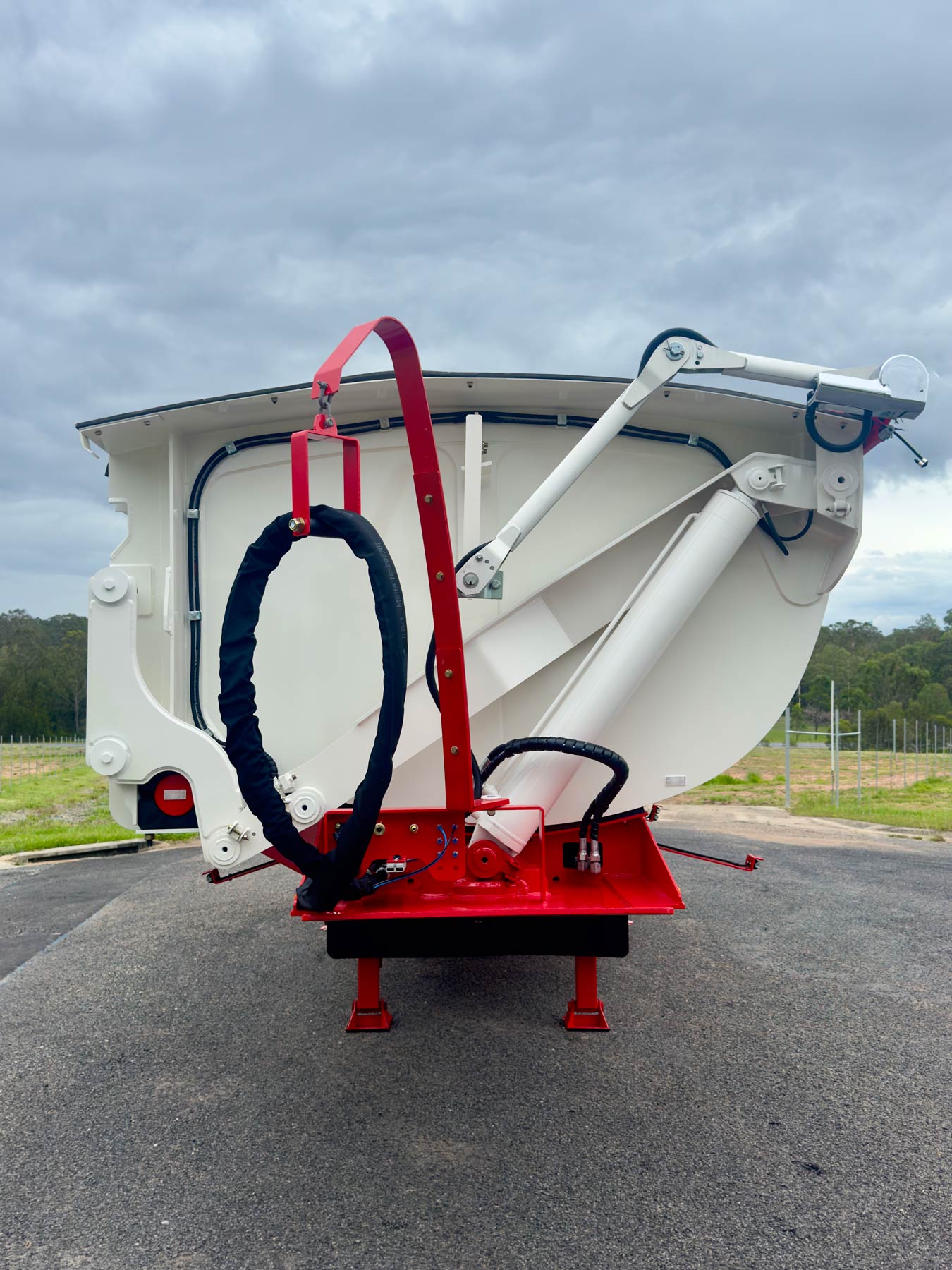

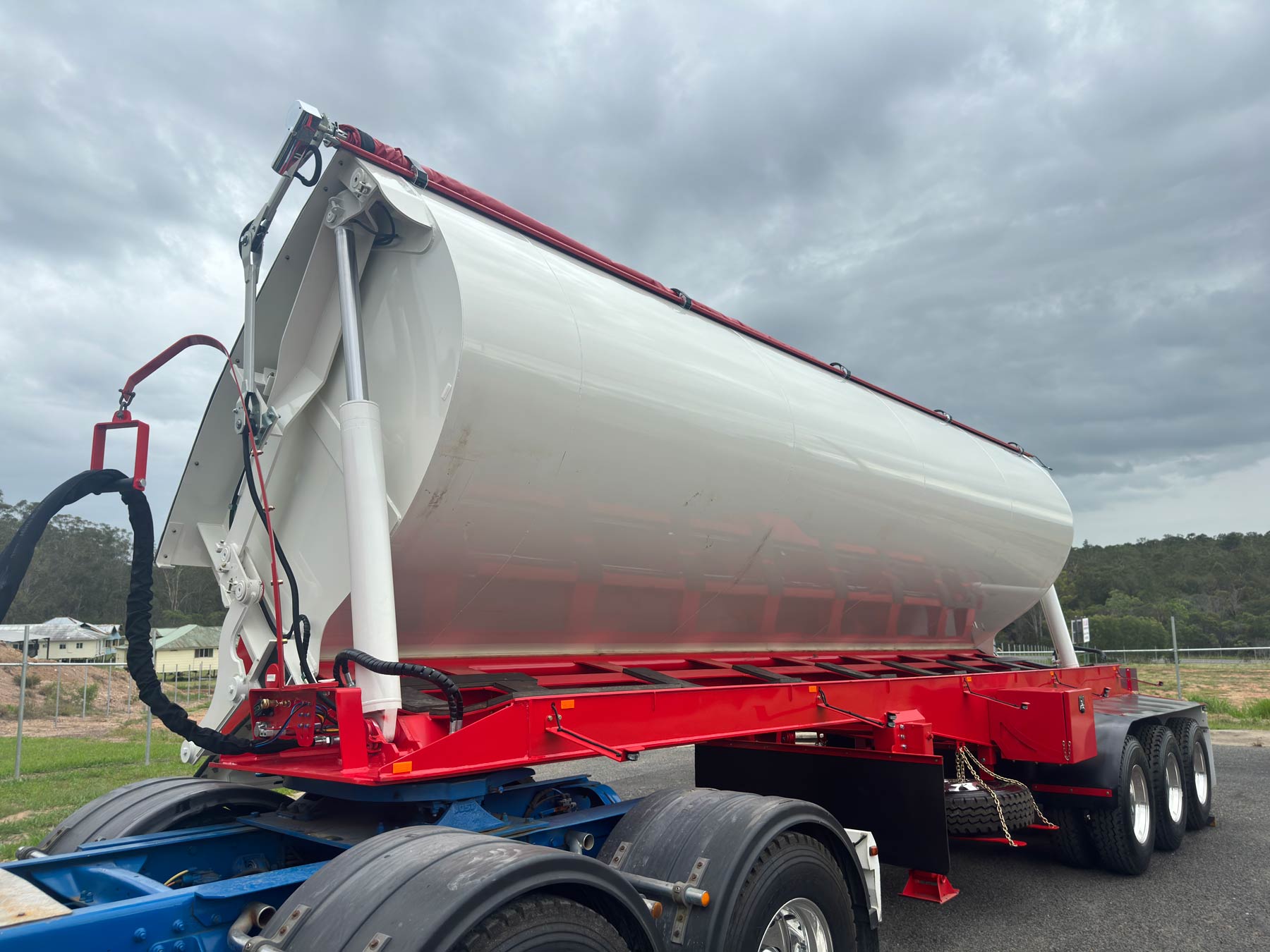

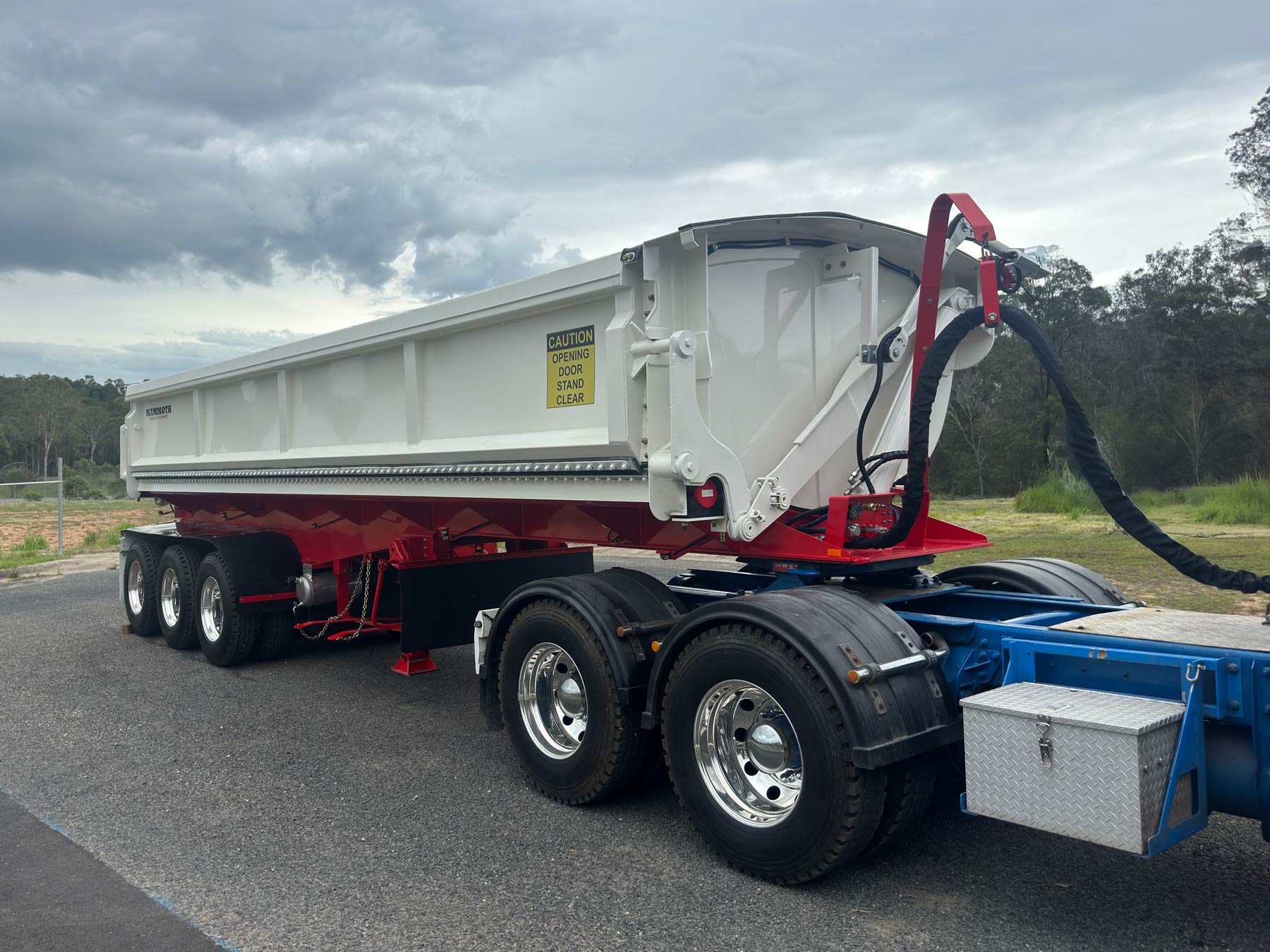

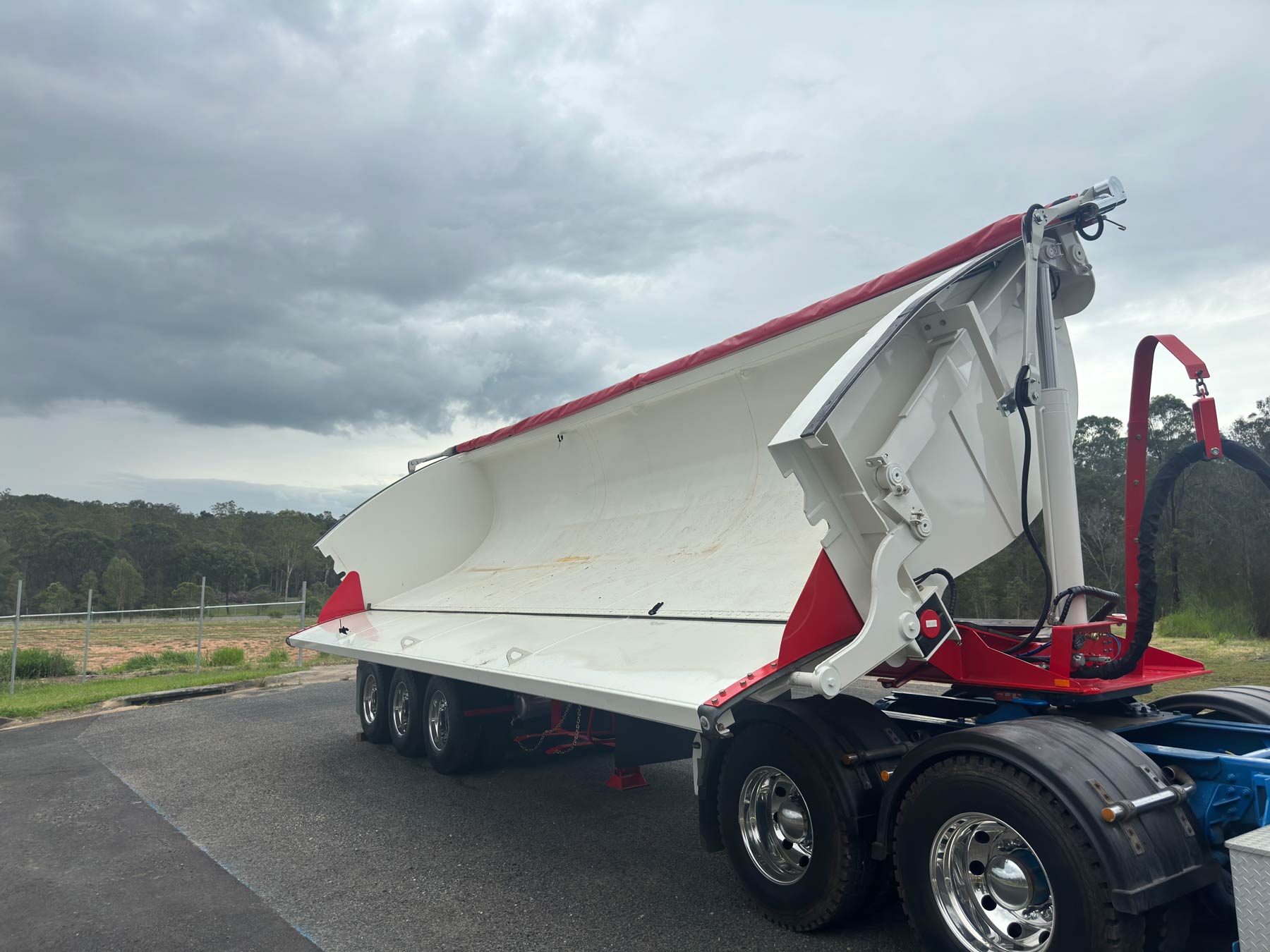

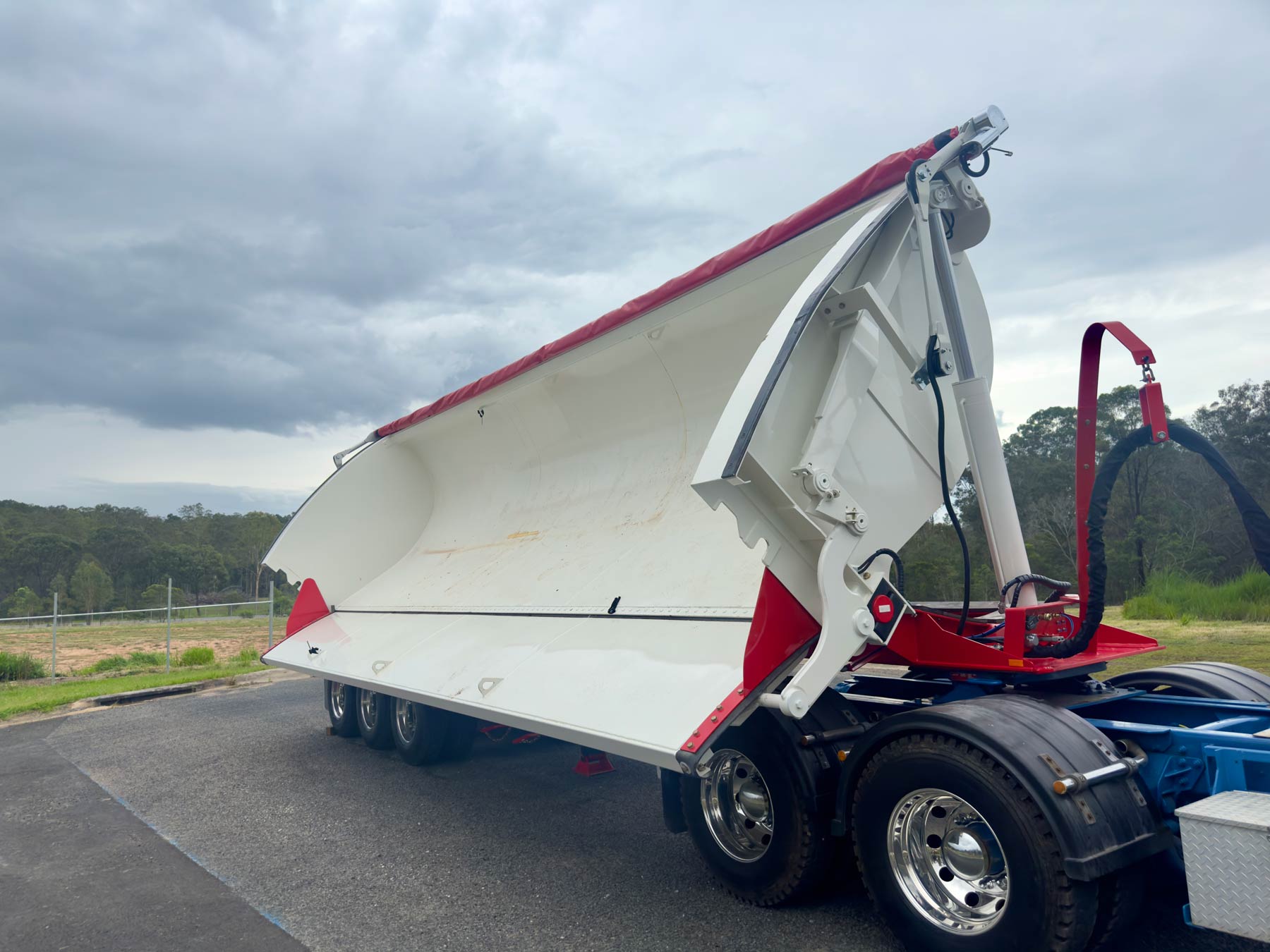

Side Tipper Gallery
Technical Specifications
Dimensions
A Trailer:
- 5.3m bin length
- 16m³ Capacity
B Trailer:
- 8.7m bin length
- 23m³ Capacity
Mass
ATM: 47t
- Semi, B-Double Road Train
GTM:
- Spring 23.5t
Tare:
- A Trailer: 8.4t
- B Trailer: 9.3t
Axles & Suspension
- K Hitch Mechanical Suspension and Axels
- Airbag suspension available as custom order
Braking & Tyres
- Air Brake Corporation braking system

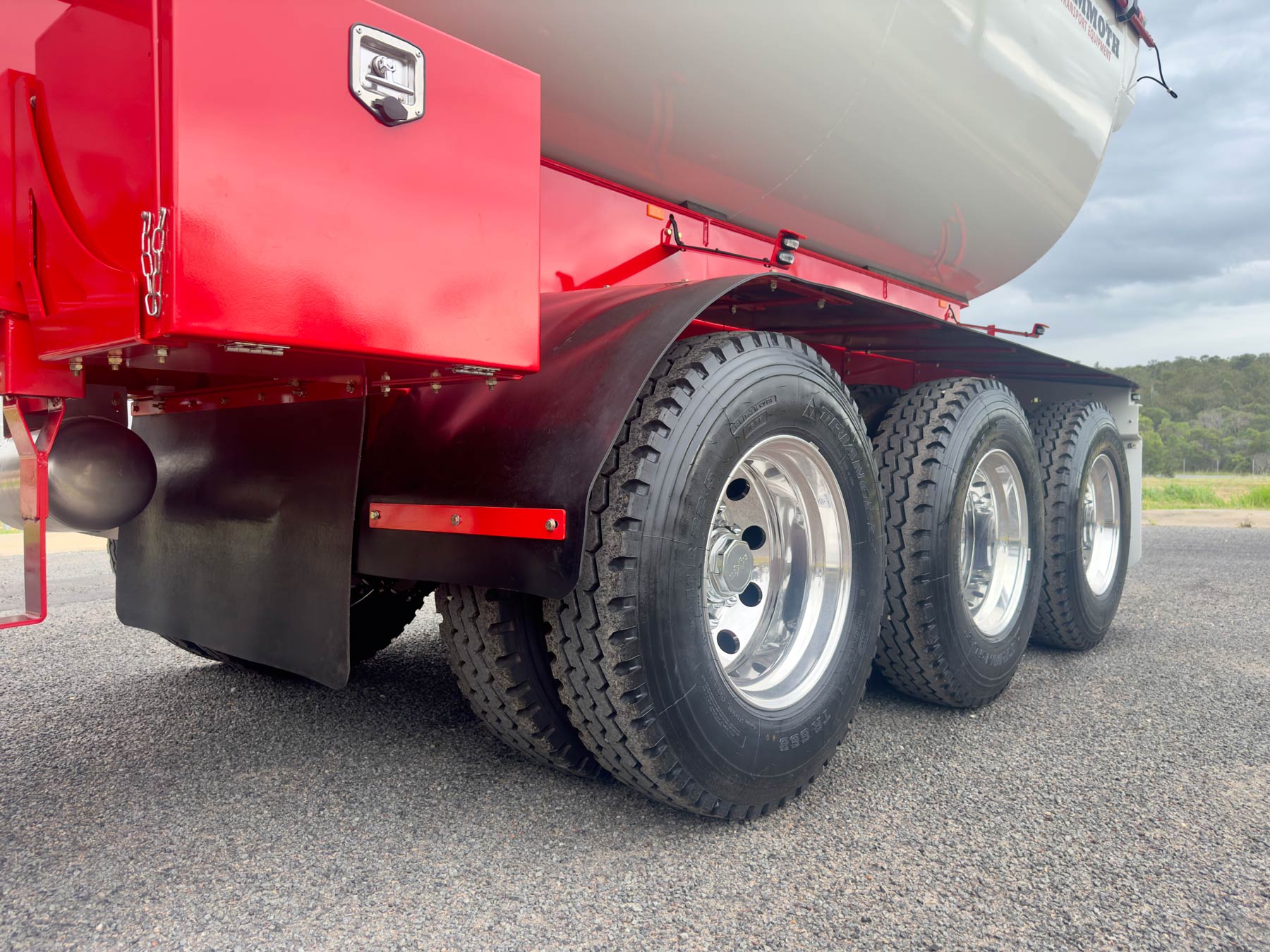

- 22.5 11R tyres on 10 stud polished Alloy rims (including 1 x spare per B trailer)
Construction:
- BS700 grade steel chassis
- 5mm NM450 body
Standard Features
- Full length rubber door hinge with seal
- 2 Position king pin (B trailer)
- KHitch Turntable (A trailer (options available))
- Data Track Pro Hubometer

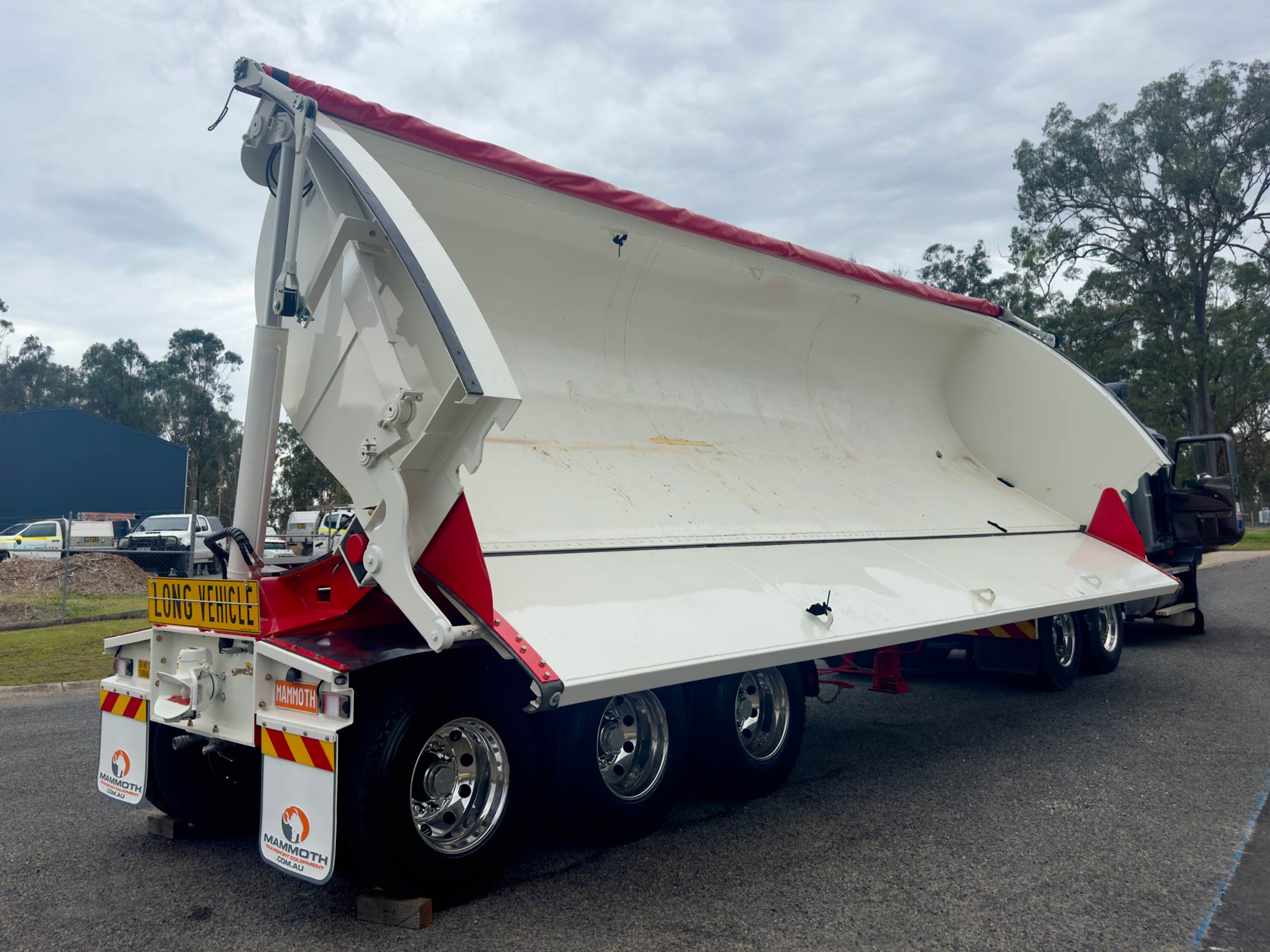

- Single cylinder mechanical arm with over centre lock

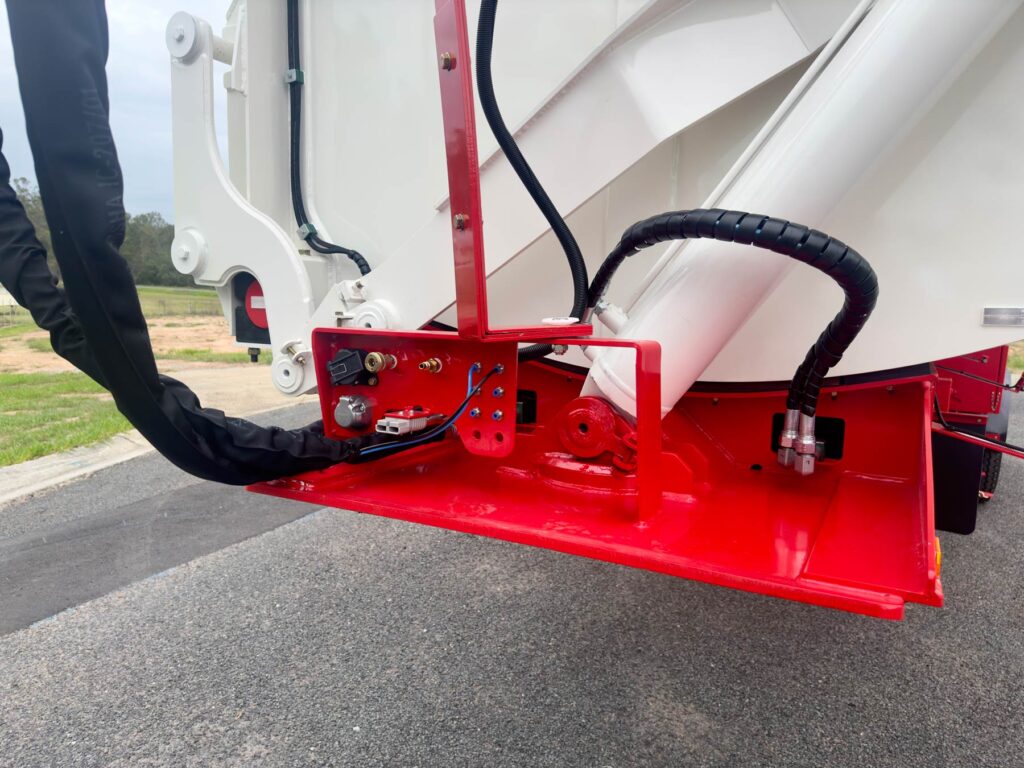

- Plug and play wiring harness
- Electric roll over mesh tarp with remote control system
- Sand blasted and painted in 2Pac Paint
- Hella side markers and taillights
- Chrome centre hubs and nut covers
- Fitted Long Vehicle and Road Train Signs

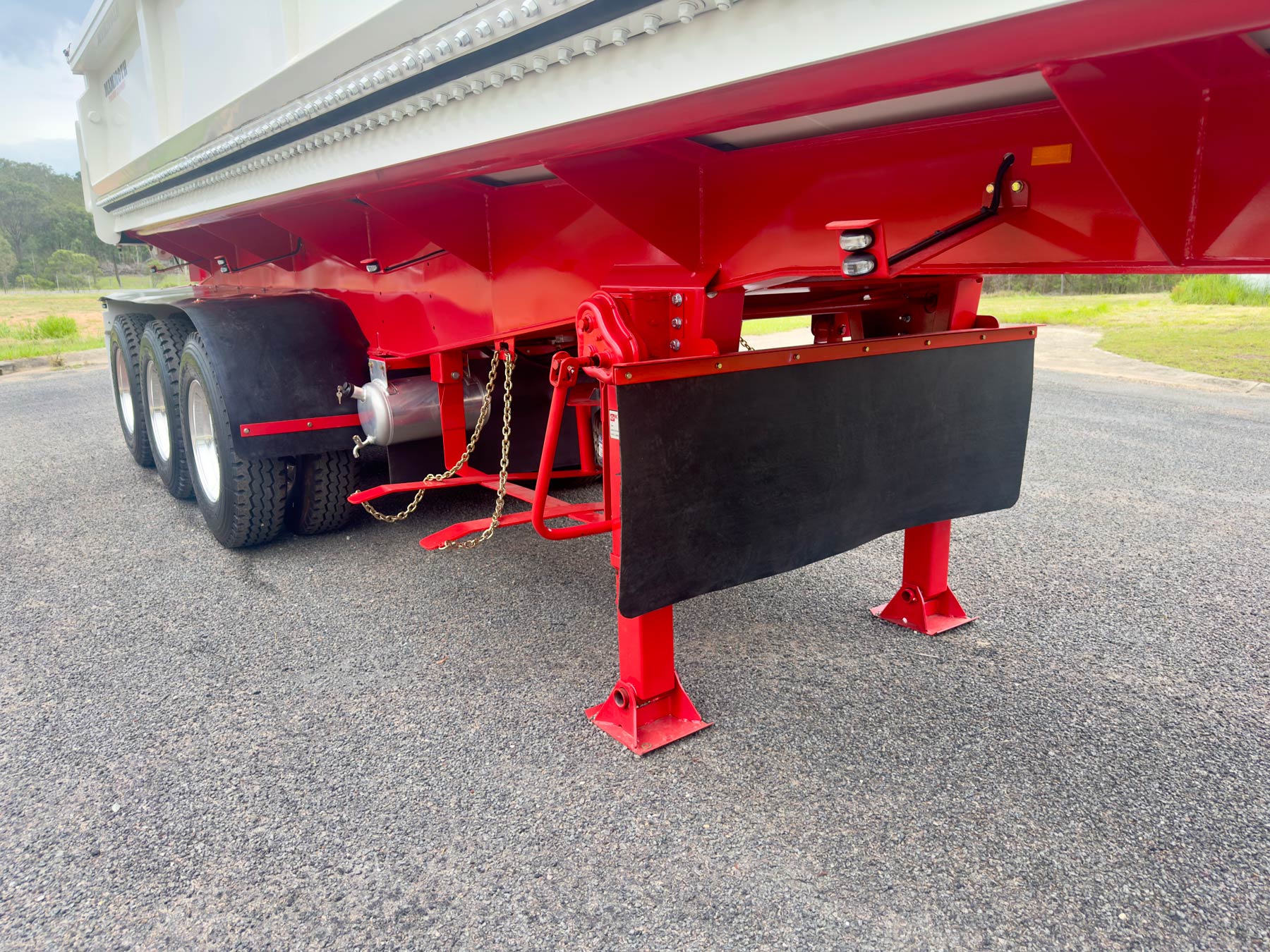

- 2 speed landing legs
- 1 lockable steel toolbox
- Aluminium water tank
- Single piece rubber guards
- Rubber stone guards (landing legs and axles)
- Hydraulic Line Pogo Stick (hose antenna)
- Road Train lead including Ringfeder
- 12 month warranty
Can be paired with a dolly for additional configurations.
