About the Split Tri Deck Widener Trailer
An upgrade on your traditional tri-axle drop deck widener, with the same features you need to get the job done, this trailer can widen from 2.5m to 4m, but allows a higher payload.
It’s about smarter transport, with its axle configuration allowing higher payloads, you move more in fewer trips, cutting down fuel, labour, and maintenance costs. Built for operators who demand productivity, this trailer helps turn big loads into big savings.
Split Tri Deck Widener Benefits
The Split Tri Deck Widener maximises payload efficiency with a versatile widening range, reduces haulage costs through smarter heavy-load transport, and delivers dependable, rugged construction for demanding jobs.
- Enhanced Load Flexibility & Efficiency
The trailer widens from 2.5m to 4m and its split tri-axle design allows higher payloads, so you can transport larger or wider loads more effectively and reduce the number of trips needed. - Cost-Effective Heavy Haulage
With a robust 51t ATM (upgradable) and smart axle configuration, it cuts down on fuel, labour, and maintenance costs by boosting productivity per trip. - Durable, Work-Ready Construction
Built from BS700 grade steel with quality suspension, braking and features like bi-fold ramps and ample tie-downs, it’s engineered for reliable performance on tough jobs.
Cost Effective
High Quality
Family Owned and Run

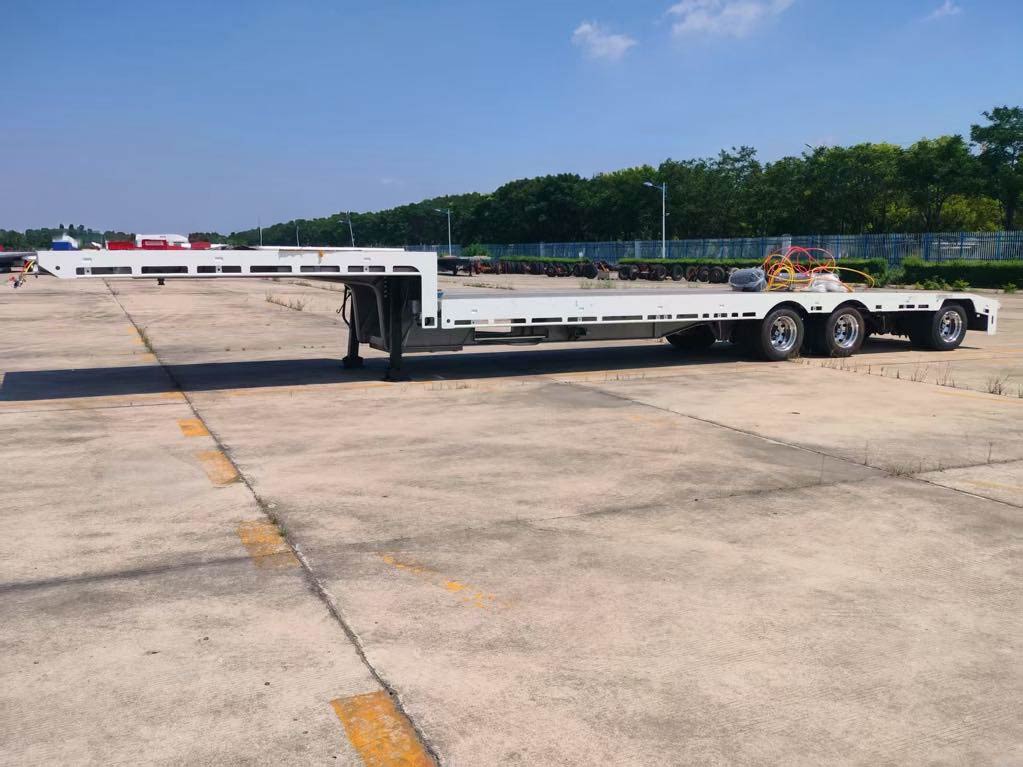

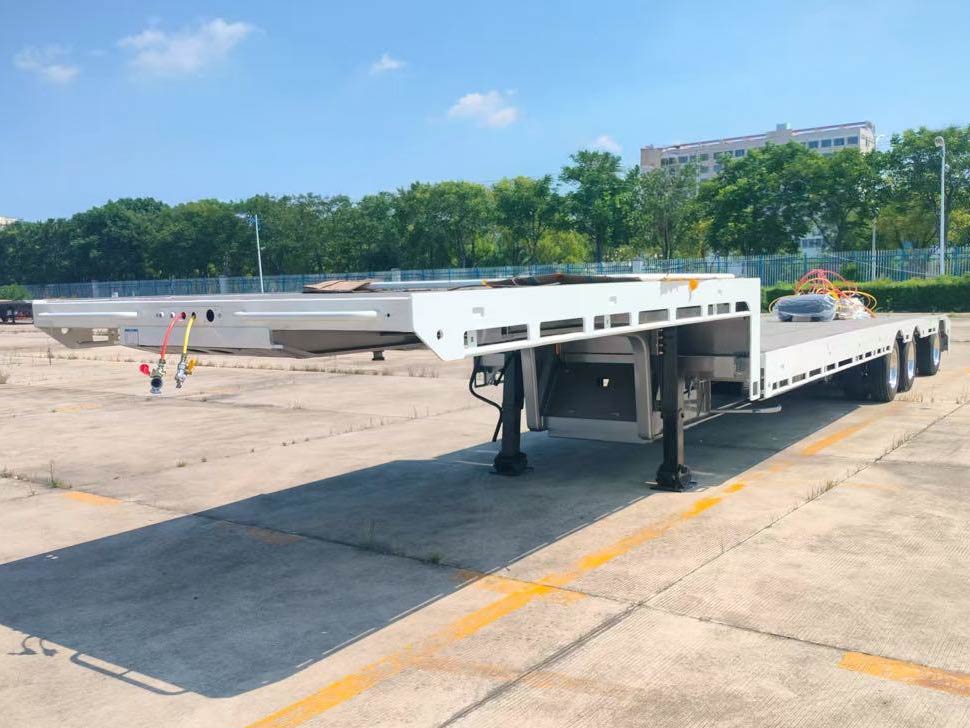

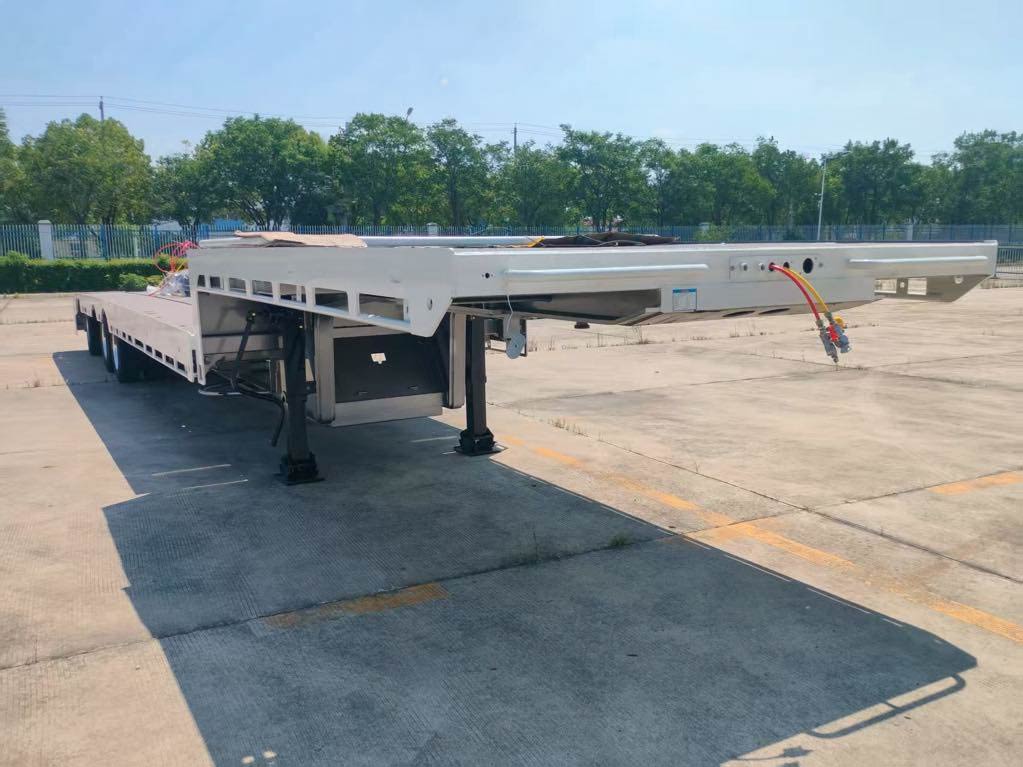

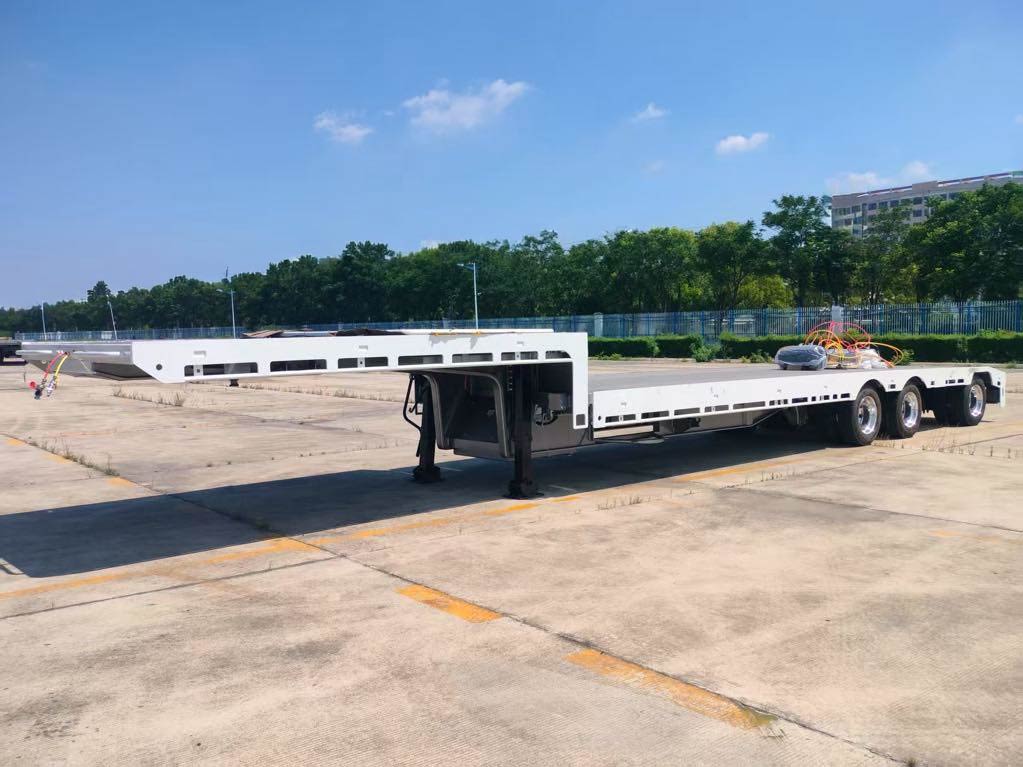

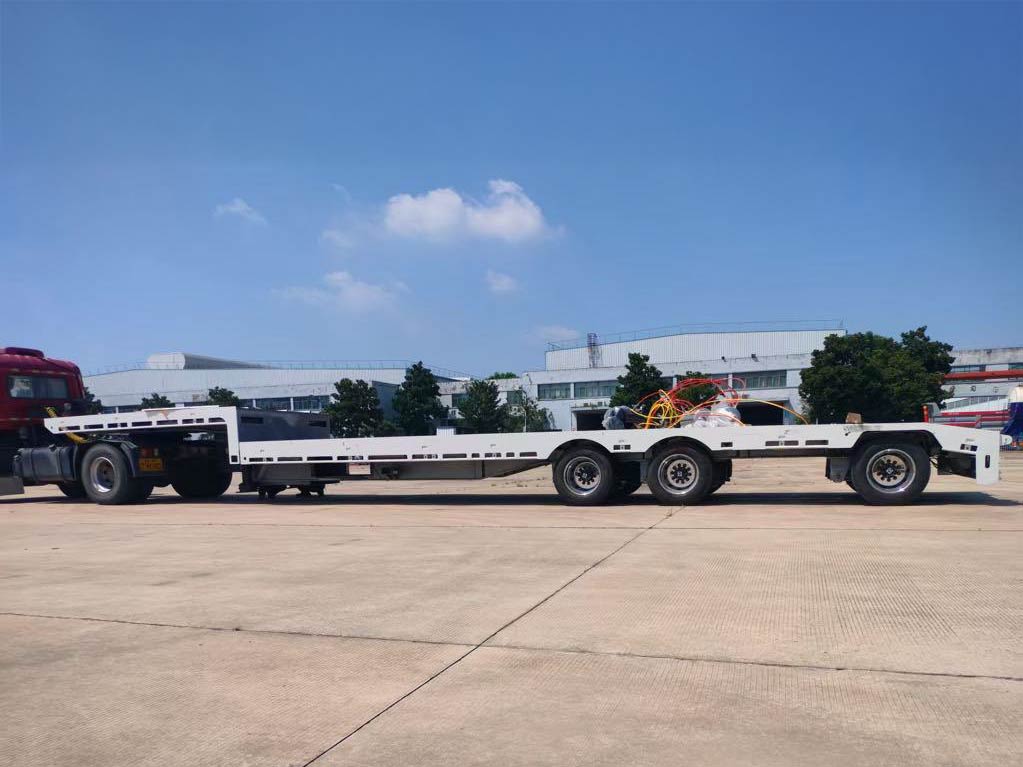

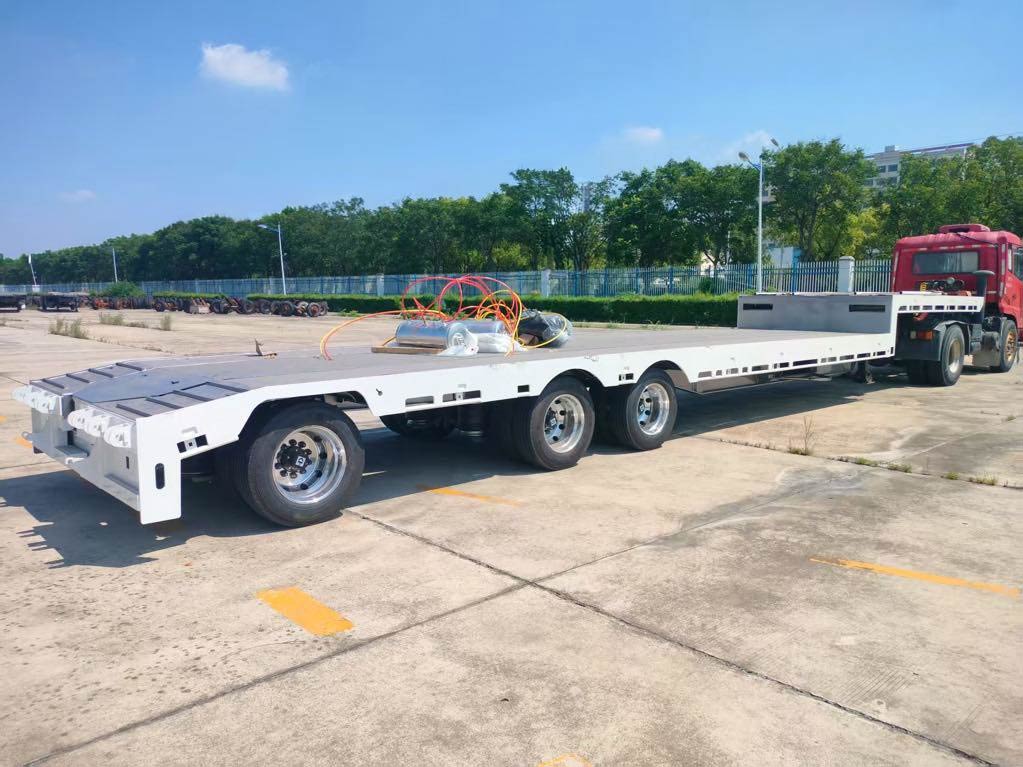

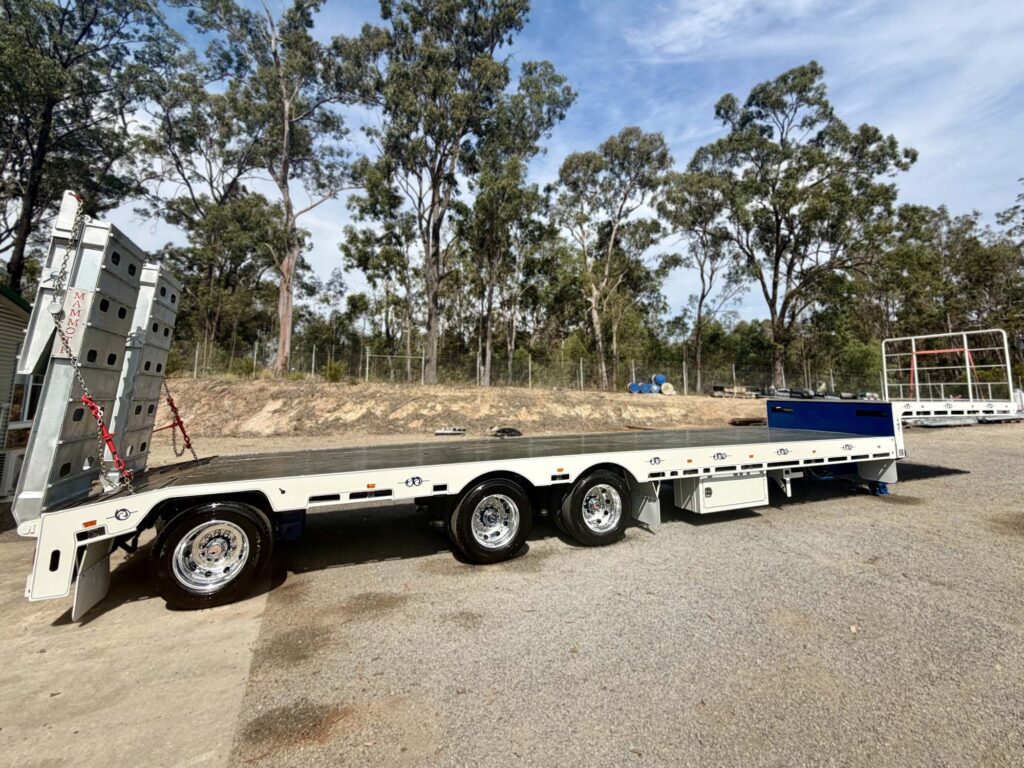

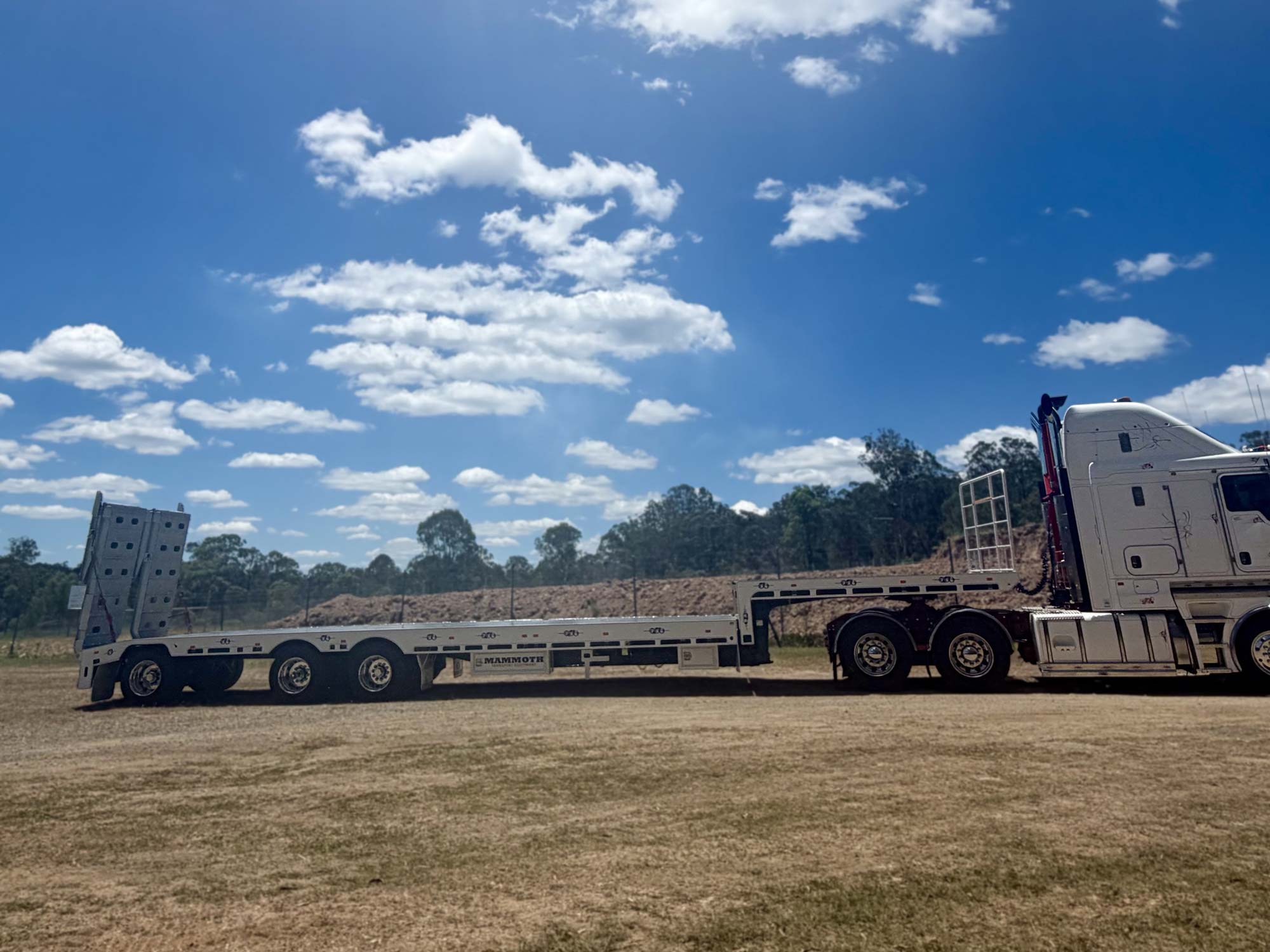

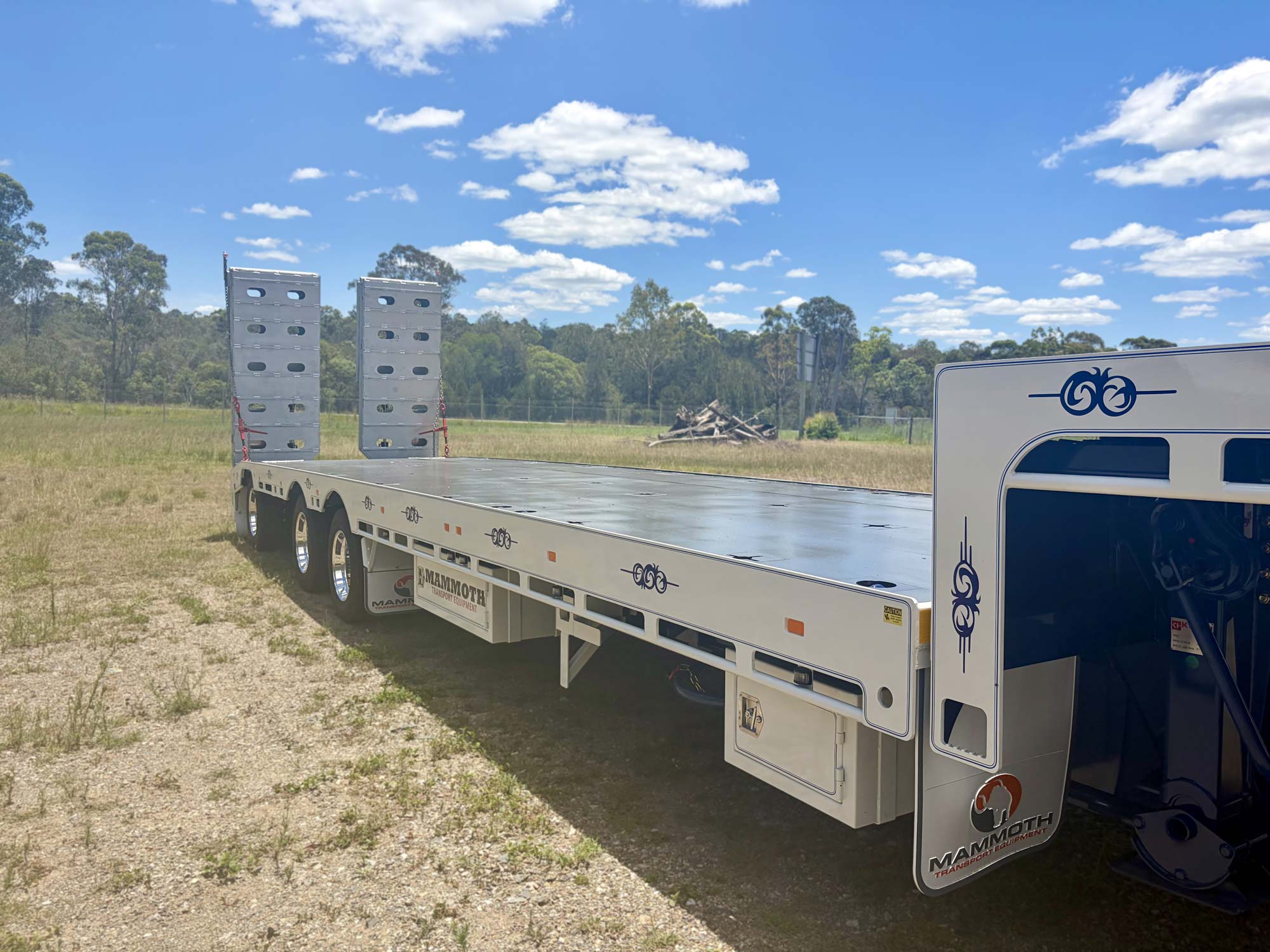

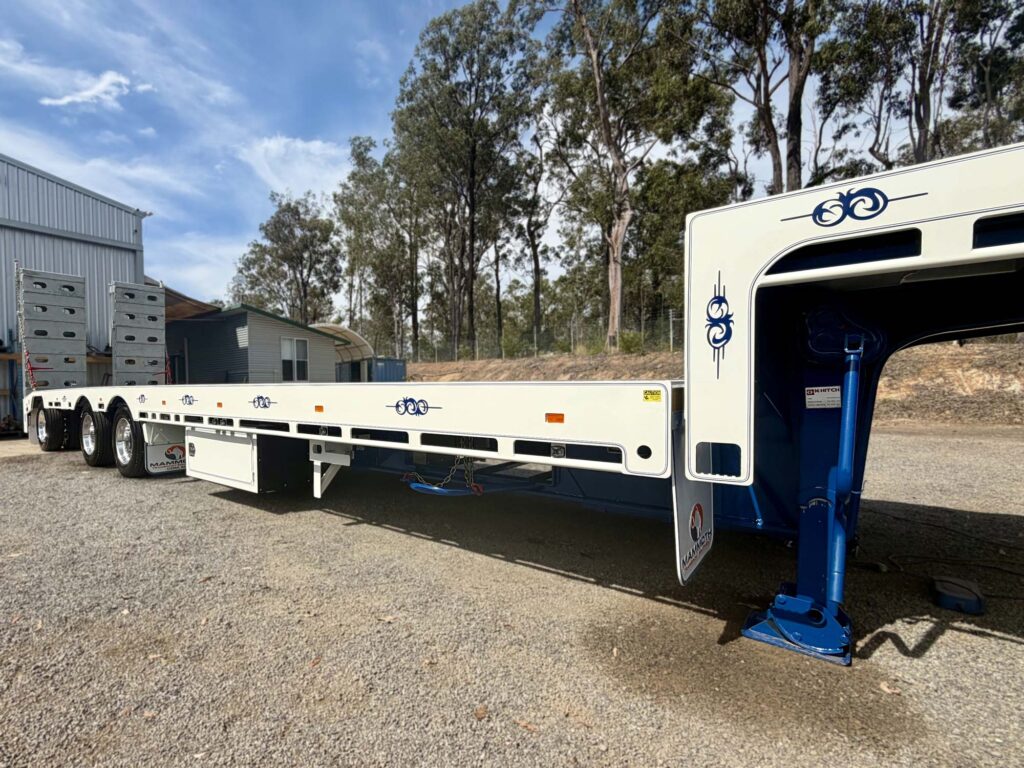

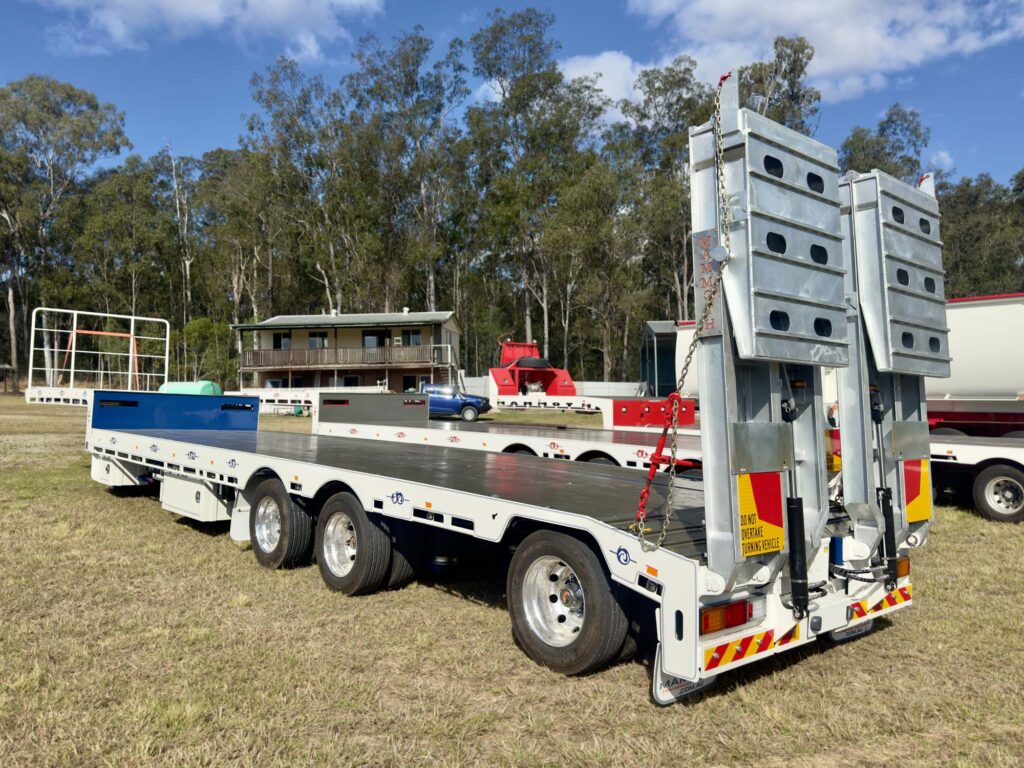

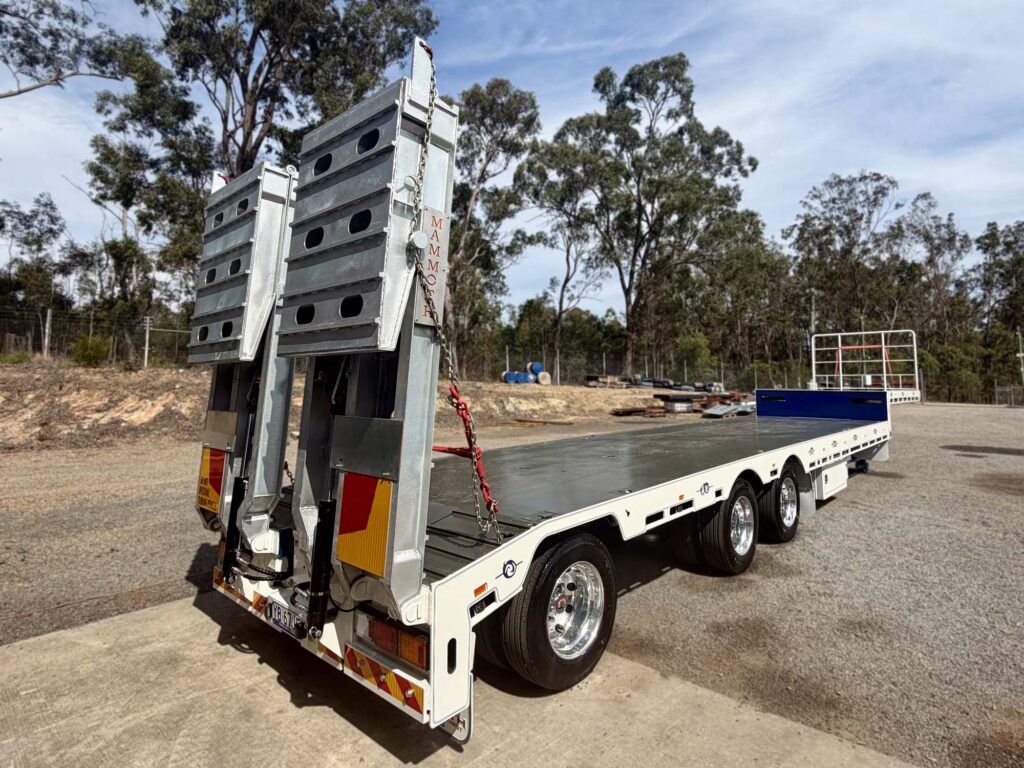

Split Tri Deck Widener Gallery
Technical Specifications
Dimensions
- Width 2.5m to 4m
- 10.4m bottom deck, 4.2m top deck
Mass
- ATM: 51t (option available to upgrade to 54t)
- GTM: Airbag: 27t
- Tare: 13.5
Construction
- BS700 grade steel
- Flat Coaming Rail: 12mm BS700 grade plasma cut
- Flooring: 5mm BS700 grade
Axles
- KHitch Axles
- Steerable Rear Axle with accessories activated locking (alternative locking options can be arranged)
Suspension
- KHitch/Weweler Airbag suspension
Braking & Tyres
- Air Brake Corporation Braking System
- 19.5 tyres with 10 stud alloy rims (including 1 x spare)
Hydraulics
- Hydraulic Network cylinders with 12V power pack, remote & fixed control panel (alternative power pack options available)
Lighting
- Hella LED Lighting
Standard Features

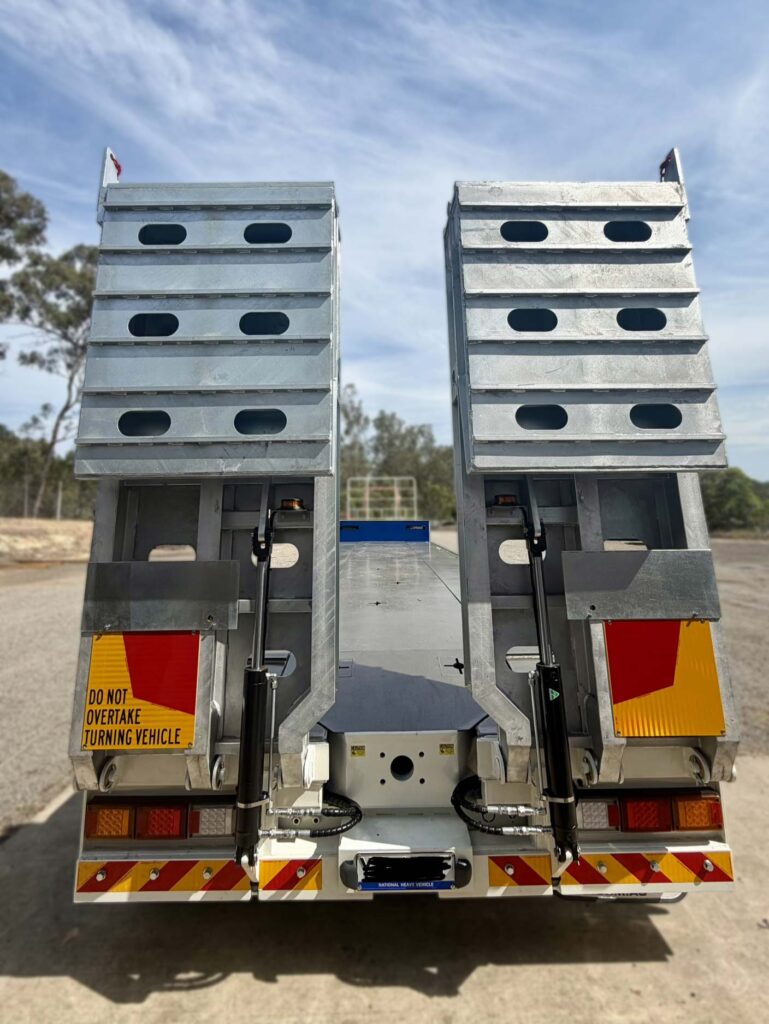

- Galvanised Bi-fold ramps with pull out top deck.
- Bolt on 10mm Skid plate with 50mm bolt on King Pin
- Data Track Pro Hubometer
- 30 deck tie down points
- Gate pockets
- 2 speed landing legs
- Flashing Light
- Fitted Oversize Signs
- Sand blasted and painted in 2Pac Paint (Colours optional) complete with scrolls
- Chrome centre hubs and nut covers
- 4 lockable steel toolboxes (2 large, 2 small)
- Aluminium water tank
- Removeable flag holders
- Tyre carrier cut through main rail
- Side steps cut in
- 3-way twist lock and chassis mounted pedestals
- 12 month warranty
